1.5mm Cable Suspension Kit with Angled Top and Standard Floor Fixings – 4.0M (13′ 1-1/2″) Long
$49.60
The Wire/Cable Suspension Kit includes: Cable, Bottom Spring Tensioner and Angled Top Fixing with 38mm (1-1/2″) Dia. Base.
Out of stock
Product Description
1.5mm (1/16″) Dia. 1.5mm Cable Suspension Kit with Angled Top and Standard Floor Fixings – 4.0M (13′ 1-1/2″) Long

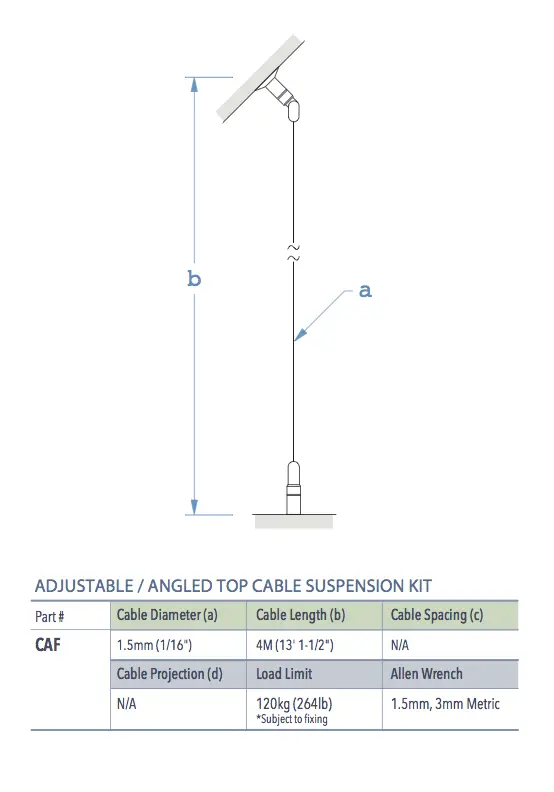

The CAF cable suspension/wire hanging kit includes factory top-crimped cable, adjustable angle top/ceiling and bottom/floor fixing with spring tensioner. Adjustable angle top-fixing comes with swivel coupling and 38mm (1-1/2″) diameter base support that can be adjusted to any angle. Use with applications that require suspending the cables from sloped cathedral or vaulted ceilings. The kit comes with cables available in 4 meters (13′ 1-1/2″), which can be conveniently adjusted or trimmed on-site during installation.
The CAF cable suspension/wire hanging kit features a minimalist ergonomic design and is engineered for flexibility and durability. The cables, crafted from robust galvanized steel, are designed to resist fraying, kinking, and snapping. Each cable consists of 19 steel strands encasing a single steel wire core, resulting in a strong yet flexible assembly with excellent abrasion resistance, capable of supporting up to 120 kg (264 lbs). The 1.5mm (1/16″) diameter cable can be utilized with a variety of standard, multi-position, or specialty supports for holding graphic panels, decorative partition panels, frames, graphic holders, and various other presentations.
Additionally, the CAF cable suspension/wire hanging kit is compatible with a range of accessories, such as info/poster acrylic holders, acrylic frames, aluminum frames, aluminum graphic holders, and brochure and literature acrylic holders.
Explore All Cable Fixing Kits ❯
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.
Attributes
| Cable Length | |
|---|---|
| Top Fixing | |
| Bottom Fixing Tensioner | |
| Load Limits | |
| Compatibility | Use with any 1.5mm Cable Panel, Shelf, Frame or Specialty Support Fittings |
| Weight | |
| Mounting Options | |
| Material Thickness | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all cable display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Colors and Finishes:
Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Cable fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
Installations Instructions
How to Install CAF 4.0M (13′ 1-1/2″) Long 1.5mm (1/16″) Dia. Cable with Angled Top and Standard Floor Fixings ❯ DOWNLOAD THE PDF HERE.
