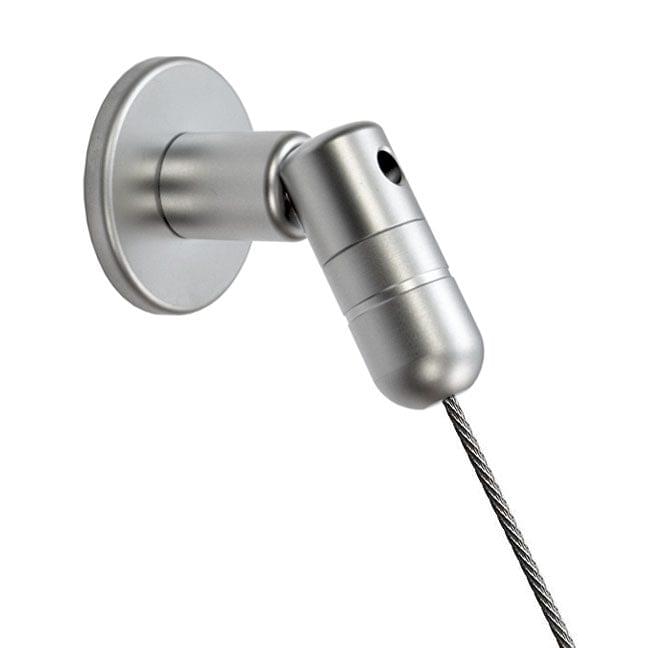

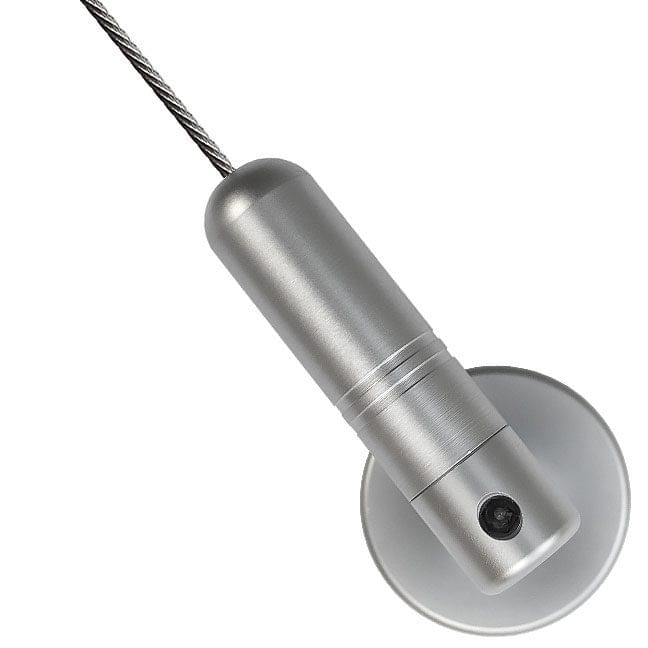

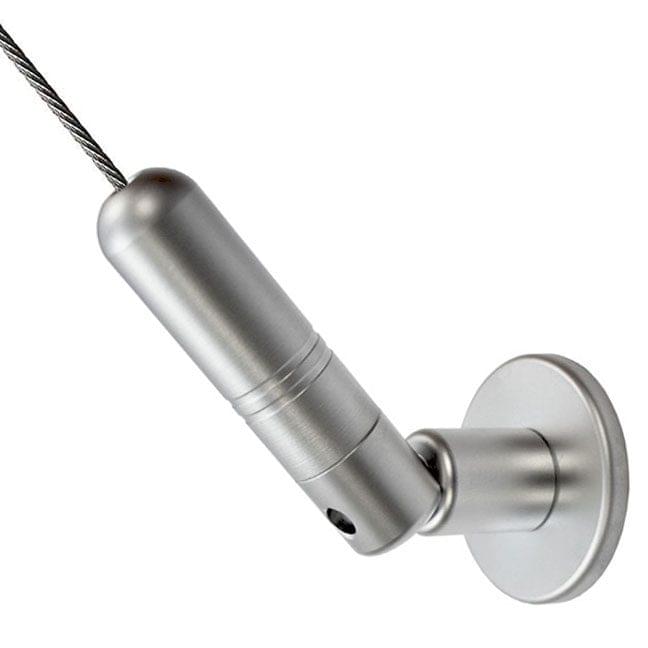

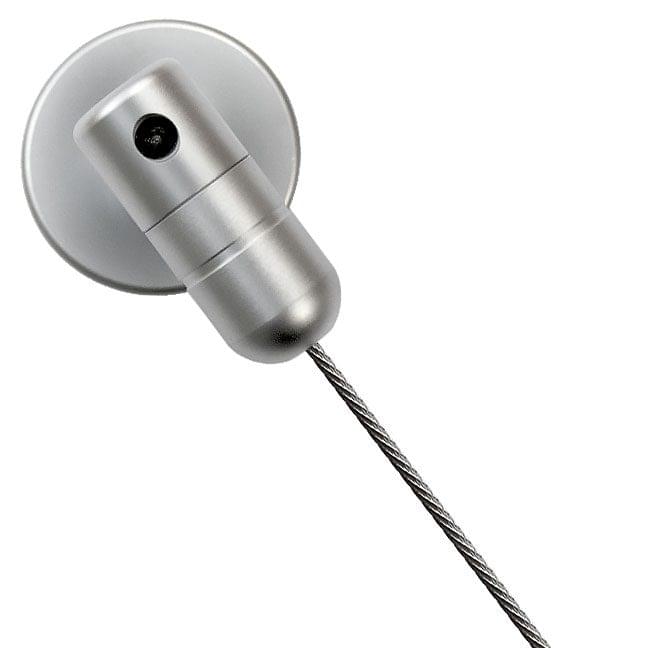

38mm (1-1/2″) Dia. Base Support with Ball-Joint Swivel Coupling for Cables

Original price was: $24.70.Current price is: $21.00.

Optional Top/Bottom Base Support with Adjustable Angle Coupling for use with 1.5mm and 3mm diameter cable suspension sets (C100-2M, C101-4M, C300-2M, and C301-4M).

Frequently Bought Together with:

1.5mm Cable Suspension Kit with Ceiling Fixing – 2.0M (6' 5-3/4") Long (Use with Interchangeable Base Supports)

Cable Suspension Kit includes: Cable and Top Fixing w/Standard Base Support. Optional Base Supports in 25mm, 38mm or 50mm diameter are available.

3mm Cable Suspension Kit with Ceiling Fixing – 2.0M (6' 5-3/4") Long

Cable Suspension Kit includes: Cable and Top Fixing w/Standard Base Support. Optional Base Supports in 25mm38mm or 50mm diameters are available.

1.5mm Cable Suspension Kit with Ceiling-to-Floor Fixings – 4.0M (13' 1-1/2") Long (Use with Interchangeable Base Supports)

Cable Suspension Kit includes: Top and Bottom Fixings with Spring Tensioner and Standard Base Supports

3mm Cable Suspension Kit with Ceiling-to-Floor Fixings – 4.0M (13' 1-1/2") Long

Cable Suspension Kit includes: Top and Bottom Fixings with Spring Tensioner and Standard Base Supports in Satin Chrome Finish. Use with Optional Base Supports in 25mm, 38mm or 50mm diameters.

#10 x 2 in, Flat Head, Stainless Steel Screw

Use with 25mm, 38mm or 50mm diameter base supports for cable/rod systems, or wall mounts, standoffs and edge grips.

Availability: In stock

Product Description

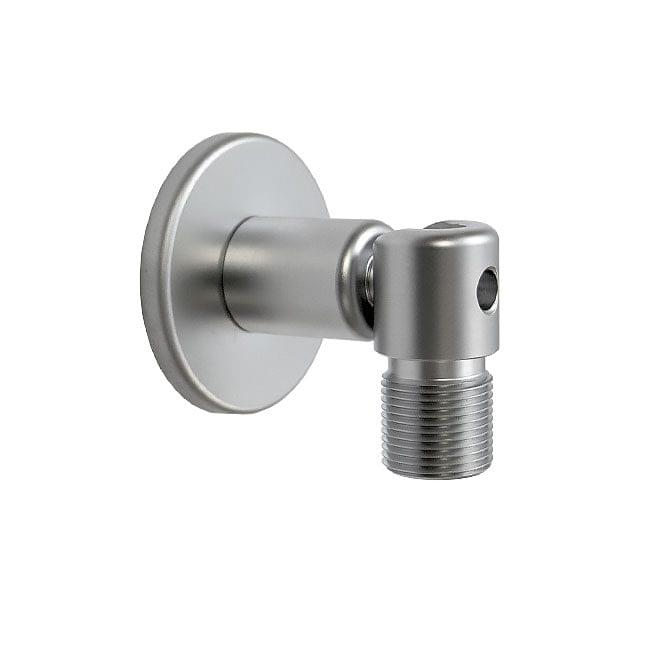

Top/Bottom Base Support with Ball-Joint Swivel Coupling for Cable Systems – 38mm (1-1/2″) Diameter Base

Optional Base Support with Adjustable Angle Coupling for use with 1.5mm and 3mm diameter cable suspension sets (C100-2M, C101-4M, C300-2M, and C301-4M).

Attributes

Top Fixing

Load Limits

Compatibility

Weight

Mounting Options

Materials

Finish

Availability

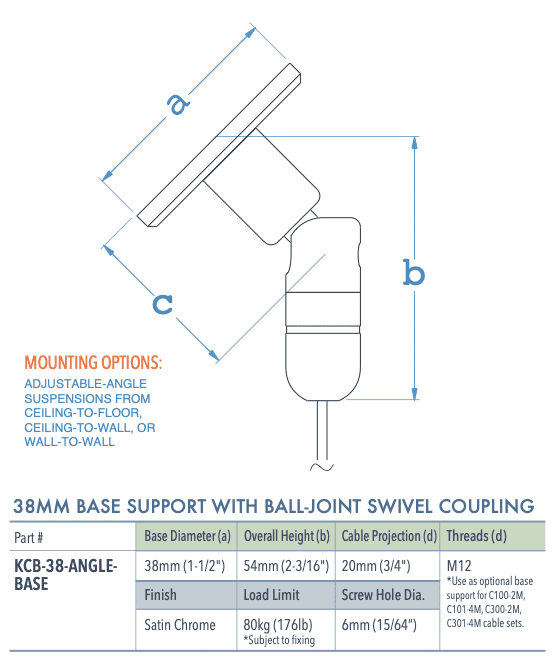

Specifications for KCB-38-ANGLE-BASE

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

Cables used in assemblies are made from galvanized steel and are resistant to fraying, kinking or snapping. Cables have a 7 × 7 configuration: seven individual wires twisted into seven different layers/rows to make a total construction composed of 49 wires. This creates a durable construction with high flexibility and abrasion resistance. Cable fixings are made from a brass alloy, UNS C37710/ASTM B124. Cables are provided with spring tensioners—cable will not slacken with temperature changes; easily adjusted without tools.

Colors and Finishes:

Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.

Quality/Warranty:

Cables are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
