1.5mm Cable Suspension Kit with Quick-Fit Fixings – 4.0M (13′ 1-1/2″) Long

Original price was: $27.20.Current price is: $24.48.

Cable Suspension Kit includes: Top/Bottom Fixings with Quick-Fit Toggles for attachment to Rails/Tracks.

Frequently Bought Together with:

PANEL SUPPORT SINGLE – For panels up to 4mm (5/32") thick. (Use with 1.5mm Cables)

Use with 1.5mm Cable Hanging System to support acrylic pockets, signs and graphic panels from sides.

PANEL SUPPORT DOUBLE – For panels up to 4mm (5/32") thick. (Use with 1.5mm Cables)

Use with 1.5mm Cable Hanging System to support acrylic pockets, signs and graphic panels from sides.

VERTICAL SUPPORT SINGLE – For panels up to 7mm (1/4") thick. (Use with 1.5mm Cables)*

Ideal for supporting acrylic pockets, signs and graphic panels from sides

PANEL SUPPORT DOUBLE – For panels up to 7mm (1/4") thick. (Use with 1.5mm Cables)

Use with 1.5mm Cable Hanging System to support acrylic pockets, signs and graphic panels from sides.

Availability: In stock

Product Description

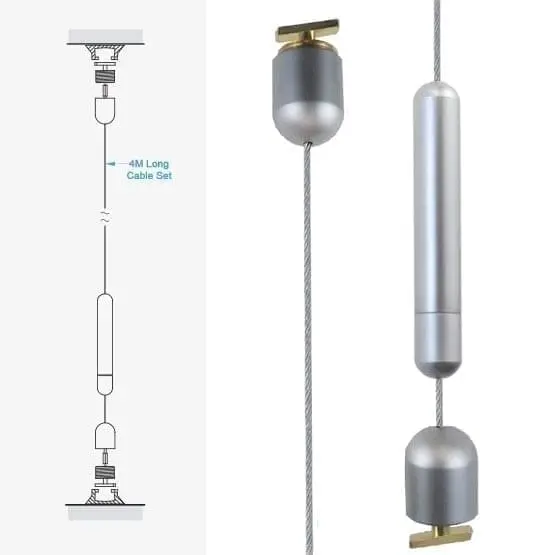

1.5mm (1/16″) Dia. Cable Suspension Kit with Quick-Fit Fixings – 4.0M (13′ 1-1/2″) Long

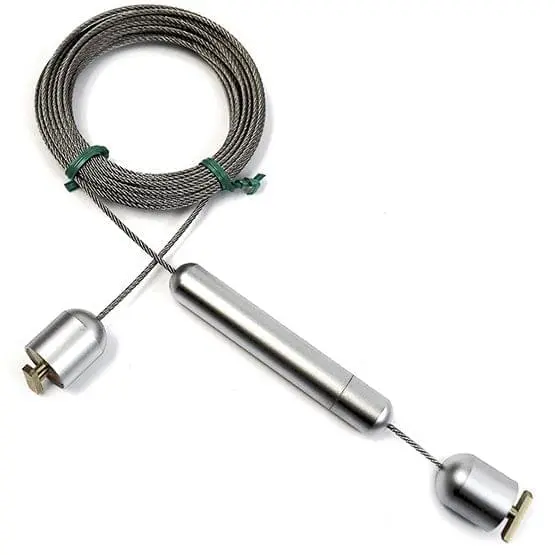

The CQQ cable suspension/wire hanging kit includes factory top-crimped cable, top/bottom fixings, adjustable spring tensioner for cable, and quick-fit toggles for attachment to ceiling-to-floor or wall-to-wall configured rails/tracks. It is primarily designed for typical ceiling-to-floor or wall-to-wall installations or tailored suspended applications that require rails or tracks. The kit comes with cables available in 4 meters (13′ 1-1/2″), which can be conveniently adjusted or trimmed on-site during installation. For projects requiring longer lengths, we also offer replacement cables or kits with extended cable options of up to 8 meters (26′ 4″) or more upon request.

The CQQ cable suspension/wire hanging kit features a minimalist ergonomic design and is engineered for flexibility and durability. The cables, crafted from robust galvanized steel, are designed to resist fraying, kinking, and snapping. The versatile 1.5mm (1/16″) diameter cable is compatible with a wide range of standard or specialty supports, making it ideal for various display and presentation needs. It can effectively hold graphic panels, literature displays, decorative panels and screens, aluminum or wood frames, graphic holders, and horizontal rods for fabrics. This versatility allows for creative and functional solutions in retail environments, exhibitions, office spaces, and other commercial or residential settings where sleek, adaptable display systems are desired.

The CQQ cable suspension/wire hanging kit is primarily used with aluminum rails/tracks to enhance display flexibility and simplify the installation process. By using toggles affixed to the cable anchor, users can adjust the cables and move them sideways. Tracks are available in lengths of 4, 6, or 8 feet, with custom sizes or continuous runs available upon request. For installation, rail or track systems must be securely mounted to a solid structure or blocking, which includes attaching tracks to ceiling struts, structures above the ceiling line, or wall studs.

Additionally, the CQQ cable suspension/wire hanging kit is compatible with a range of accessories, such as info/poster acrylic holdersacrylic framesbrochure and literature acrylic holdersmagazine and book acrylic holders, and sloped acrylic shelves.

Explore All Cable Fixing Kits

⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.

Attributes

Cable Length

Top Fixing

Bottom Fixing Tensioner

Load Limits

Compatibility

Weight

Mounting Options

Material Thickness

Materials

,

Finish

Allen Wrench Size

Availability


Specifications for CQQ

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

Cables used in assemblies are made from galvanized steel and are resistant to fraying, kinking or snapping. Cables have a 7 × 7 configuration: seven individual wires twisted into seven different layers/rows to make a total construction composed of 49 wires. This creates a durable construction with high flexibility and abrasion resistance. Cable fixings are made from a brass alloy, UNS C37710/ASTM B124. Cables are provided with spring tensioners—cable will not slacken with temperature changes; easily adjusted without tools.

Colors and Finishes:

Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.

Quality/Warranty:

Cables are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.

Installations Instructions

How to Install CQQ 4.0M (13′ 1-1/2″) Long 1.5mm (1/16″) Dia. Quick-Fit Cable with Top/Bottom Fixings ❯ DOWNLOAD THE PDF HERE.
