1.5mm Cable Suspension Kit with Wall-to-Wall Fixings – 3.0M (9′ 10″) Long (Use with Interchangeable Base Supports)
Original price was: $37.80.$30.24Current price is: $30.24.
Cable Suspension Kit includes: Cable, Spring Tensioner and Wall Fixings with 38mm (1-1/2″) Dia. Bases – Optional Base Supports in 25mm or 50mm diameter are available. Cable Projection from Wall – 38mm (1-1/2″).
Availability: In stock
Product Description

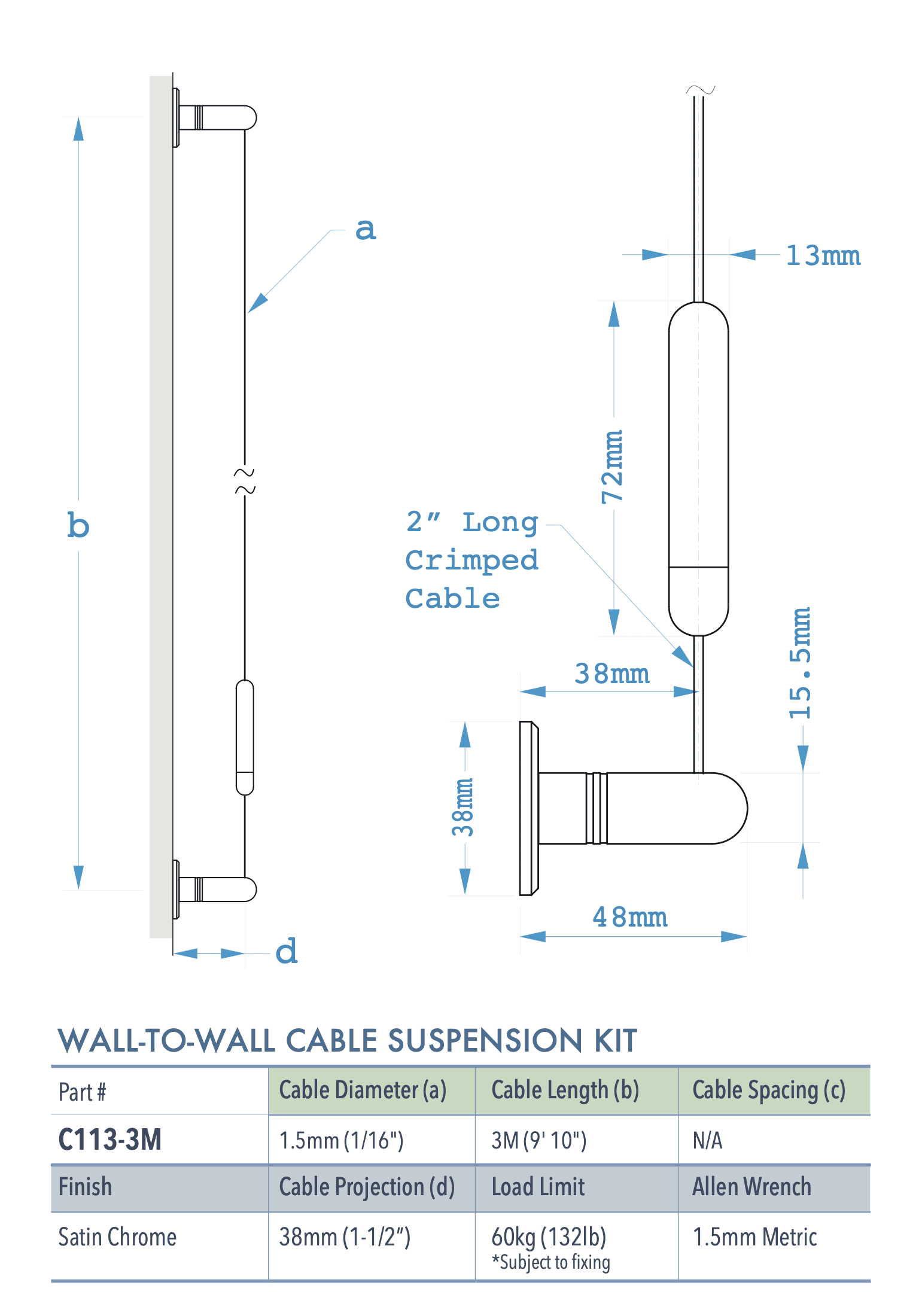

1.5mm (1/16″) Dia. Cable Suspension Kit with Wall-to-Wall Fixings – 3.0M (9′ 10″) Long
The C113-3M cable suspension/wire hanging kit includes a factory top-crimped cable, wall fixing with 38mm (1-1/2″) diameter bases, and a bottom adjustable spring tensioner for cable. It is primarily designed for typical wall-to-wall suspended applications and display installations. The kit comes with cables available in 4 meters (13′ 1-1/2″), which can be conveniently adjusted or trimmed on-site during installation. For projects requiring longer lengths, we also offer replacement cables or kits with extended cable options of up to 8 meters (26′ 4″) or more upon request.
The C113-3M cable suspension/wire hanging kit combines minimalist aesthetics with robust engineering, offering both flexibility and durability. Crafted from high-quality galvanized steel, the cables are designed to withstand fraying, kinking, and snapping, ensuring long-lasting performance. Each cable’s construction features 19 steel strands encasing a single steel wire core, resulting in a strong yet flexible assembly with superior abrasion resistance. This design allows for an impressive weight capacity of up to 120 kg (264 lbs) for vertical installations. However, for wall-mounted applications, we recommend adhering to a safety working load limit of 60 kg (132 lbs) per cable to ensure optimal security and longevity. The versatile 1.5mm (1/16″) diameter cable is compatible with a wide range of standard or specialty supports, making it ideal for various display and presentation needs. It can effectively hold graphic panels, literature displays, decorative panels and screens, aluminum or wood frames, graphic holders, and horizontal rods for fabrics. This versatility allows for creative and functional solutions in retail environments, exhibitions, office spaces, and other commercial or residential settings where sleek, adaptable display systems are desired.
Additionally, the C113-3M cable suspension/wire hanging kit is compatible with a range of accessories, such as info/poster acrylic holders, acrylic frames, brochure and literature acrylic holders, magazine and book acrylic holders, and sloped acrylic shelves.
Explore All Cable Fixing Kits ❯
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.
Attributes
| Cable Length | |
|---|---|
| Top Fixing | |
| Bottom Fixing Tensioner | |
| Load Limits | |
| Compatibility | Use with any 1.5mm Cable Panel, Frame or Specialty Support Fittings |
| Weight | |
| Mounting Options | |
| Material Thickness | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
Cables used in assemblies are made from galvanized steel and are resistant to fraying, kinking or snapping. Cables have a 7 × 7 configuration: seven individual wires twisted into seven different layers/rows to make a total construction composed of 49 wires. This creates a durable construction with high flexibility and abrasion resistance. Cable fixings are made from a brass alloy, UNS C37710/ASTM B124. Cables are provided with spring tensioners—cable will not slacken with temperature changes; easily adjusted without tools.
Colors and Finishes:
Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Cables are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
