Product Description

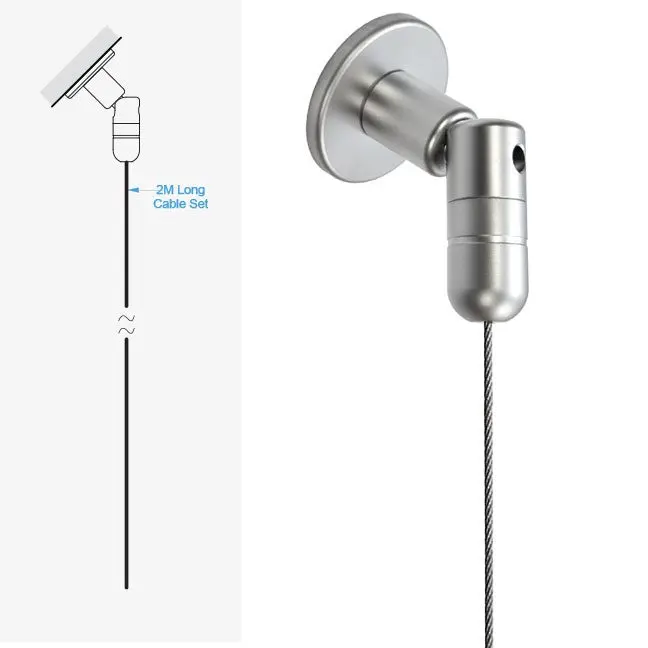

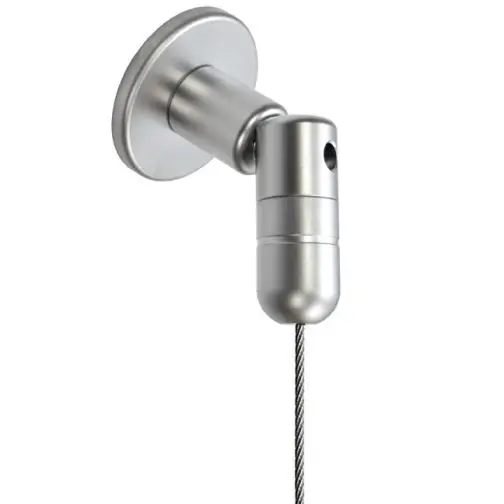

1.5mm (1/16″) Dia. Cable Suspension Kit with Adjustable Angle Top/Ceiling Fixing – 2.0M (6′ 5-3/4″) Long
The C120-2M cable suspension/wire hanging kit includes a factory end-crimped cable and an adjustable angled-top fixing. Adjustable angle fixing comes with ball-joint swivel coupling and 38mm (1-1/2″) diameter base support that can be adjusted to any angle. Use with applications that require mounting the cable at an angle such as suspending from sloped cathedral or vaulted ceilings. It is primarily designed for typical ceiling-overhead suspended applications. The kit comes with cables available in 2 meters (6′ 5-3/4″), which can be conveniently adjusted or trimmed on-site during installation.
The C120-2M cable suspension/wire hanging kit features a minimalist ergonomic design and is engineered for flexibility and durability. The cables, crafted from robust galvanized steel, are designed to resist fraying, kinking, and snapping. Each cable consists of 19 steel strands encasing a single steel wire core, resulting in a strong yet flexible assembly with excellent abrasion resistance, capable of supporting up to 120 kg (264 lbs). The 1.5mm (1/16″) diameter cable can be utilized with a variety of standard or specialty supports for holding graphic panels, hanging overhead signs, acrylic or glass shelves, decorative partition panels, aluminum or wood frames, hanging clothes rails, graphic holders, horizontal rods for fabrics, and various other presentations.
Additionally, the C120-2M cable suspension/wire hanging kit is compatible with a range of accessories, such as sign blanks, info/poster acrylic holders, acrylic frames, aluminum frames, aluminum graphic holders, and acrylic or glass shelves.
Explore All Cable Fixing Kits ❯
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.
Attributes
| Cable Length | |
|---|---|
| Top Fixing | |
| Load Limits | |
| Compatibility | Use with any 1.5mm Cable Panel, Frame or Specialty Support Fittings |
| Weight | |
| Mounting Options | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
Cables used in assemblies are made from galvanized steel and are resistant to fraying, kinking or snapping. Cables have a 7 × 7 configuration: seven individual wires twisted into seven different layers/rows to make a total construction composed of 49 wires. This creates a durable construction with high flexibility and abrasion resistance. Cable fixings are made from a brass alloy, UNS C37710/ASTM B124. Cables are provided with spring tensioners—cable will not slacken with temperature changes; easily adjusted without tools.
Colors and Finishes:
Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Cables are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
Installations Instructions
How to Install the 1.5mm (1/16″) DIA. CABLE w/Ceiling Fixing ❯ DOWNLOAD THE PDF HERE.
You may also consider these products...
-

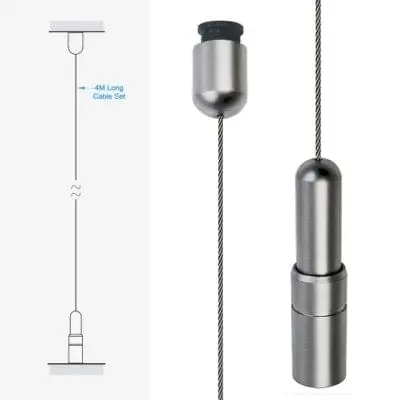

1.5mm Cable Suspension Kit with Ceiling-to-Floor Fixings – 4.0M (13′ 1-1/2″) Long (Use with Interchangeable Base Supports)
Original price was: $25.20.$21.42Current price is: $21.42. Add to cart -
1.5mm Cable Suspension Kit with Adjustable Angle Top and Standard Floor Fixings – 4.0M (13′ 1-1/2″) Long
Original price was: $58.60.$49.81Current price is: $49.81. Add to cart -

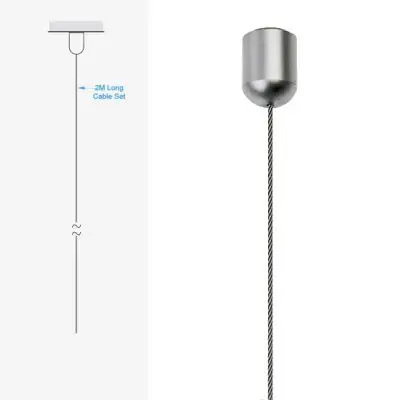

1.5mm Cable Suspension Kit with Ceiling Fixing – 2.0M (6′ 5-3/4″) Long (Use with Interchangeable Base Supports)
