Cable Suspended Acrylic Showcase Display Kit #KSC-003
Original price was: $517.00 – $549.20.$499.56 – $531.76Current price is: $499.56 – $531.76.
1/4″ Thick Clear Acrylic Display Case – Lockable. Kit supplied with 1.5mm cable suspension hardware, supports, and acrylic display cases.
*Acrylic Display Showcases are Made-to-Order (MTO) – All sales final, no returns, no exchanges. Please read our WebStore “Terms & Conditions Policy“.
Product Description

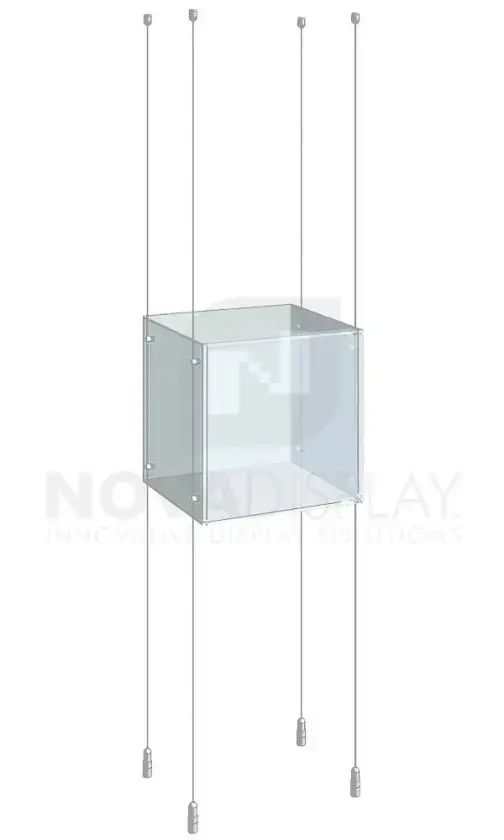

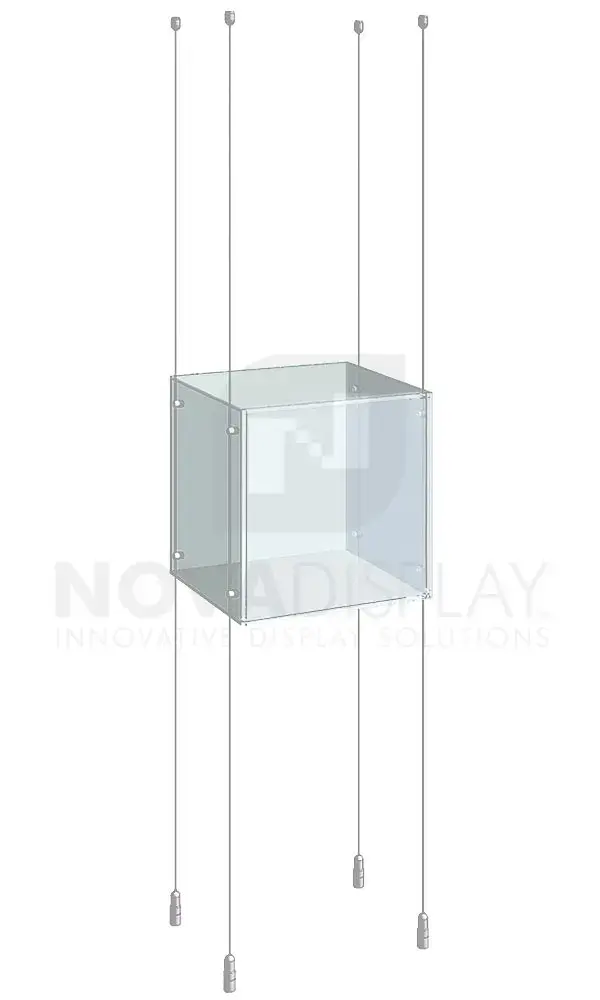

Cable Suspended Acrylic Showcase Display Kit / Non-Illuminated
Supplied with acrylic display cases made of 1/4″ (6mm) thick clear acrylic. Available in two different sizes: 12″ x 12″ x 12″, and 15″ x 15″ x 15″.
FIXING TYPE:
Suspended from Cables (Ceiling-to-Floor)
HARDWARE:
CA4 – Top / Bottom Fixings & Cables (4 ea)
Cable Length – up to 13 feet (*To be cut/adjusted in place)
CS13 – Support Single (8 ea)
ACCESSORIES:
Acrylic Display Case / Lockable
14CASE-*SIZE*/CL – 1/4″ Thick Clear Acrylic Case with Sliding Back Panel and Lock (1 ea)
(*Choose Case Size)
AVAILABILITY: 10-15 Bus. Days (Fabrication and Delivery Time)
FINISHES: Mounting Hardware is supplied in satin chrome finish as standard, other finishes on request. The display showcases are made of high-quality 1/4″ thick clear acrylic.
CUSTOMIZATIONS: We custom fabricate Acrylic Display Showcases in various configurations using clear acrylic as standard. Specially designed cases with frosted sides, mirrored back, or satinice colors are also available. All custom orders are subject to a minimum order requirement. For pricing on custom sizes and configurations please send us a sketch or detailed description with expected time-line using our Quote Request Form
INSTALLATION NOTES: Assembly required.
Additional Information
Non-Lit Acrylic Locking Display Case – ALL CLEAR. Size: 12" & 15" Cubes
| Case Size | |
|---|---|
| Width | |
| Load Option | |
| Load Limits | |
| Compatibility | |
| Weight | |
| Mounting Options | 8 x 5mm (3/16") Dia. Holes (12" between centers), 8 x 5mm (3/16") Dia. Holes (9" between centers) |
| Material Thickness | |
| Finish | |
| Availability |
Cleaning & Handling of Acrylic Display Products
When caring for acrylic accessories, it’s crucial to avoid using incorrect cleaners, as they can cause harm. Never use cleaners containing ammonia, glass cleaners, or furniture polish such as Fantastik, Tilex, Windex, or Clorox, as they can damage your acrylic. Instead, use mild soap and water or products specifically recommended for cleaning acrylic, such as Novus or other Rated Anti-Static Cleaner and Polish for Plastics. When cleaning, use micro-fiber disposable low lint cloths designed for acrylic and other plastics, and avoid using a dry cloth or your hand. Using the wrong cleaner can lead to immediate or delayed damage, weakening structural joints and causing cracking. During installation, handle acrylic with care to prevent cracking.
Product Limitations
Acrylic is not as rigid as glass or metals. Large, flat acrylic sheets, if insufficiently supported, may deform permanently due to continuous loads or even their own weight. Acrylic sheet can be used at temperatures from -30°F (-34°C) up to +190°F (+88°C), depending on the application. It is recommended that temperatures not exceed 160°F (71°C) for continuous service, or 190°F (88°C) for short, intermittent use. Components should not be exposed to high heat sources such as high wattage incandescent lamps, unless the finished product is ventilated to permit the dissipation of heat. Acrylic sheet is a combustible thermoplastic. Precautions should be taken to protect this material from flames and high heat sources.
Acrylic/Plastic Cleaning Kit
Cleaner & Polisher — cleans and brightens acrylic and all hard plastic surfaces. Leaves a shiny polished surface that resists dust and fingerprints. Contains no abrasives or harsh chemicals. Cleans, glazes, and eliminates static charge all in one operation. Recommended for: Acrylic, Plexiglass, Lexan, Vinyl, Glass, and all hard plastics. Use disposable or reusable cleaning cloths.
Install Guide
How to Install Acrylic Showcases with Cable Suspension Systems ❯ DOWNLOAD PDF HERE
More Installation Instructions are available at the Installation Guides / Download Pages. You may search for correct install guides by item code, component SKU, or product description. If you can’t find the correct guide contact us by email – General Inquires & Questions.
