Cable Suspended Acrylic Poster Display Kit #KASP-050
From: Original price was: $192.28.$178.72Current price is: $178.72.
Product Description

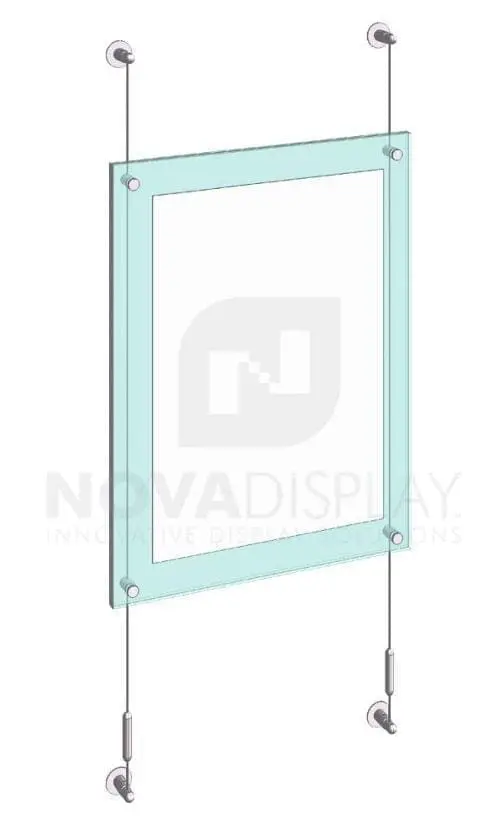

Frameless Acrylic Poster Displays / Cable Suspended Poster Display Kit (Sandwich Acrylic Frame)
FIXING TYPE:
Wall Mounted on 1.5mm Cable System (each cable is 9 feet long / can be cut & adjusted in place)
HARDWARE:
CWW – Wall Fixings & Cable (2 ea)
CS13/S-3/8 – Panel Support w/Holes Single (4 ea)
P50-TWL – Screw Set for Wall Mounting (4 ea)
38CLIP – 3/8″ Clear Clip (2 ea)
ACCESSORIES: Acrylic Panels w/Miter Corners
14ASP-W-*INSERT SIZE* – 1/4″ Clear Acrylic Back Panel (1 ea)
18ASP-W-*INSERT SIZE*NG – 1/8″ Non-Glare Acrylic Front Panel (1 ea)
(*Choose Panel Size)
AVAILABILITY: 5-10 Bus. Days (Fabrication and Delivery Time)
FINISHES: Mounting Hardware is supplied in a satin chrome finish as standard, other finishes on request. The Frameless Graphic Panels are made of high-quality 1/4″ thick clear and 1/8″ non-glare acrylic.
CUSTOMIZATIONS: To customize your own Display Kit, please send us a short description or graphical attachment using our Quote Request Form. We custom fabricate Frameless Graphic Panels in clear, non-glare or frosted acrylic in sizes up to 24″ x 36″. All custom orders are subject to a minimum order requirement.
INSTALLATION NOTES: Assembly required.
Attributes
| Insert Size | |
|---|---|
| Load Option | |
| Mounting Options | |
| Cable Length | |
| Graphic Thickness | |
| Material Thickness | |
| Finish | Satin Chrome, Clear Acrylic, Non-Glare Acrylic / Anti-Reflective (P99) |
| Availability |
Cleaning & Handling of Acrylic Display Products
When caring for acrylic accessories, it’s crucial to avoid using incorrect cleaners, as they can cause harm. Never use cleaners containing ammonia, glass cleaners, or furniture polish such as Fantastik, Tilex, Windex, or Clorox, as they can damage your acrylic. Instead, use mild soap and water or products specifically recommended for cleaning acrylic, such as Novus or other Rated Anti-Static Cleaner and Polish for Plastics. When cleaning, use micro-fiber disposable low lint cloths designed for acrylic and other plastics, and avoid using a dry cloth or your hand. Using the wrong cleaner can lead to immediate or delayed damage, weakening structural joints and causing cracking. During installation, handle acrylic with care to prevent cracking.
Product Limitations
Acrylic is not as rigid as glass or metals. Large, flat acrylic sheets, if insufficiently supported, may deform permanently due to continuous loads or even their own weight. Acrylic sheet can be used at temperatures from -30°F (-34°C) up to +190°F (+88°C), depending on the application. It is recommended that temperatures not exceed 160°F (71°C) for continuous service, or 190°F (88°C) for short, intermittent use. Components should not be exposed to high heat sources such as high wattage incandescent lamps, unless the finished product is ventilated to permit the dissipation of heat. Acrylic sheet is a combustible thermoplastic. Precautions should be taken to protect this material from flames and high heat sources.
Acrylic/Plastic Cleaning Kit
Cleaner & Polisher — cleans and brightens acrylic and all hard plastic surfaces. Leaves a shiny polished surface that resists dust and fingerprints. Contains no abrasives or harsh chemicals. Cleans, glazes, and eliminates static charge all in one operation. Recommended for: Acrylic, Plexiglass, Lexan, Vinyl, Glass, and all hard plastics. Use disposable or reusable cleaning cloths.
Install Guide
How to Install Frameless Acrylic Poster Displays on Cables ❯ DOWNLOAD PDF HERE
More Installation Instructions are available at the Installation Guides / Download Pages. You may search for correct install guides by item code, component SKU, or product description. If you can’t find the correct guide contact us by email – General Inquires & Questions.
