Product Description

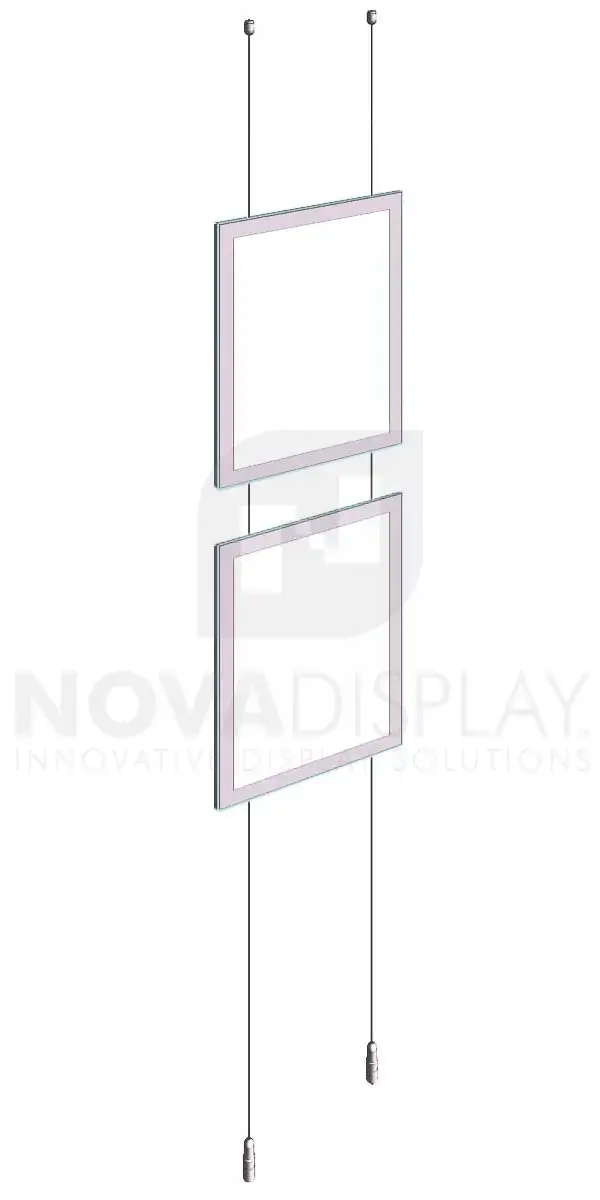

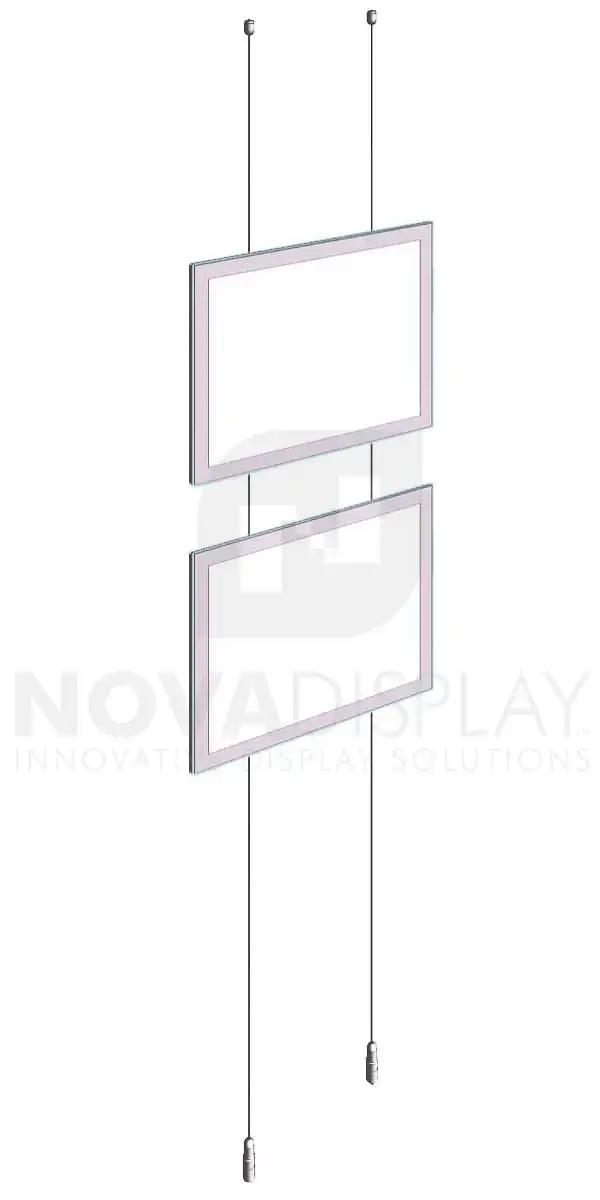

Rimless LED Display Kit with Cable Grippers / Single-Sided Display Kit
FIXING TYPE:
Suspended from Cables (Ceiling-to-Floor)
HARDWARE:
C101-4M/IS – Top/Bottom Fixings & Cable (2 ea)
Cable Length – up to 13 feet (*To be cut/adjusted in place)
CS08 – Power Connector (2 ea)
LIGHT BOX:
LPC-*SIZE*P (*L) – Rimless LED Light Pocket / Front Load Magnetic Open Style Frame / Single-Sided (2 ea)
(*Listed by Poster Insert Size)
POWER SUPPLY:
LPS12V/3.0A – AC Power Supply (1 ea)
LPS-EXT – 16 feet long AC Cable Extension (1 ea)
GRAPHICS: Optional Backlit Graphic Printing (*Choose Print Size)
AVAILABILITY: 3-7 Bus. Days (Fabrication and Delivery Time)
FINISHES: Mounting Hardware is supplied in a satin chrome finish as standard. The LED Light Pockets are made of high-quality clear acrylic and are less than 12mm (1/2″) thick.
CUSTOMIZATIONS: To customize your own Cable Suspended LED Light Pocket Kit, please send us a short description with expected time-line using our Quote Request Form. All custom orders are subject to a minimum order requirement.
INSTALLATION NOTES: Assembly required.
Cleaning & Handling of Acrylic Display Products
When caring for acrylic accessories, it’s crucial to avoid using incorrect cleaners, as they can cause harm. Never use cleaners containing ammonia, glass cleaners, or furniture polish such as Fantastik, Tilex, Windex, or Clorox, as they can damage your acrylic. Instead, use mild soap and water or products specifically recommended for cleaning acrylic, such as Novus or other Rated Anti-Static Cleaner and Polish for Plastics. When cleaning, use micro-fiber disposable low lint cloths designed for acrylic and other plastics, and avoid using a dry cloth or your hand. Using the wrong cleaner can lead to immediate or delayed damage, weakening structural joints and causing cracking. During installation, handle acrylic with care to prevent cracking.
Product Limitations
Acrylic is not as rigid as glass or metals. Large, flat acrylic sheets, if insufficiently supported, may deform permanently due to continuous loads or even their own weight. Acrylic sheet can be used at temperatures from -30°F (-34°C) up to +190°F (+88°C), depending on the application. It is recommended that temperatures not exceed 160°F (71°C) for continuous service, or 190°F (88°C) for short, intermittent use. Components should not be exposed to high heat sources such as high wattage incandescent lamps, unless the finished product is ventilated to permit the dissipation of heat. Acrylic sheet is a combustible thermoplastic. Precautions should be taken to protect this material from flames and high heat sources.
Acrylic/Plastic Cleaning Kit
Cleaner & Polisher — cleans and brightens acrylic and all hard plastic surfaces. Leaves a shiny polished surface that resists dust and fingerprints. Contains no abrasives or harsh chemicals. Cleans, glazes, and eliminates static charge all in one operation. Recommended for: Acrylic, Plexiglass, Lexan, Vinyl, Glass, and all hard plastics. Use disposable or reusable cleaning cloths.
