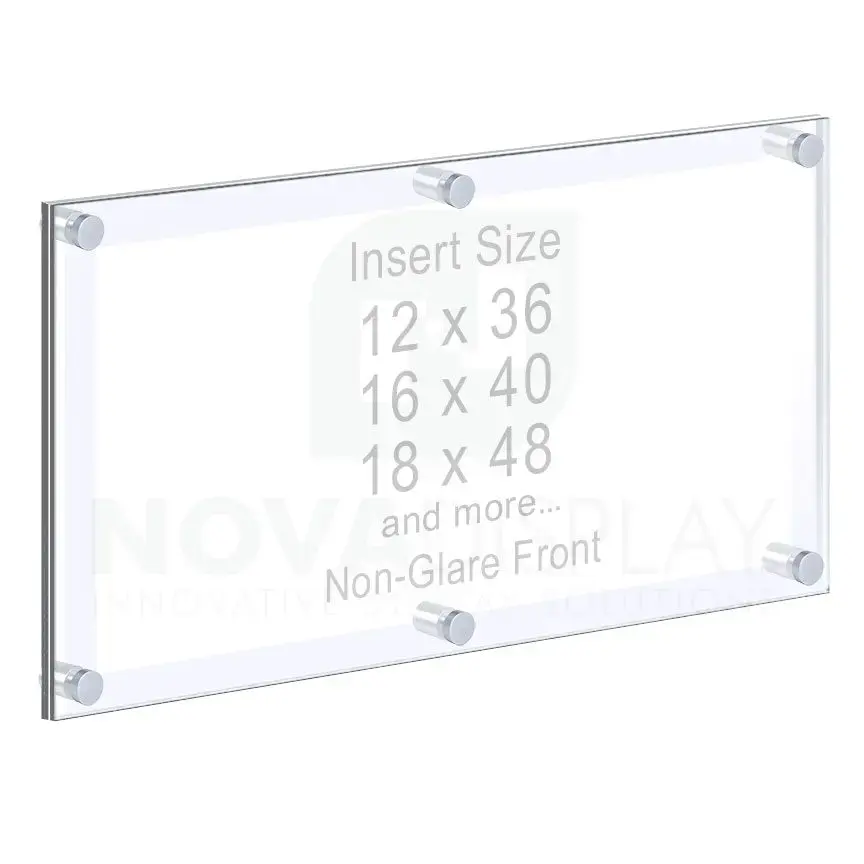

Panoramic Acrylic Frame – Poster Display Kit #KASP-225 / Non-Glare Front
$174.72 – $350.18
Panoramic Acrylic Poster Frames with Standoffs – set of 1/4″ Clear and 1/8″ Non-Glare Acrylic Panels with Laser-Cut Polished Edges.
Available in a few standard insert sizes with an aspect ratio of 3:1
Use for displaying panoramic / wide format posters, graphics, or other interchangeable printed inserts. Provides a quick and easy way to change information. Standoff wall mounts and hardware are included.
- Supplied with 6mm (1/4”) thick clear back piece and 3mm (1/8”) thick non-glare acrylic front.
- Non-glare (non-reflective) acrylic front cover helps to reduce the glare and provides protection against harmful UV rays.
- Poster/graphic insert size should be proportionally smaller to allow for at less 1-1/2” clear border on all sides.
- Use with inserts up to 80 pt, or 2 mm (3/32″) thick.

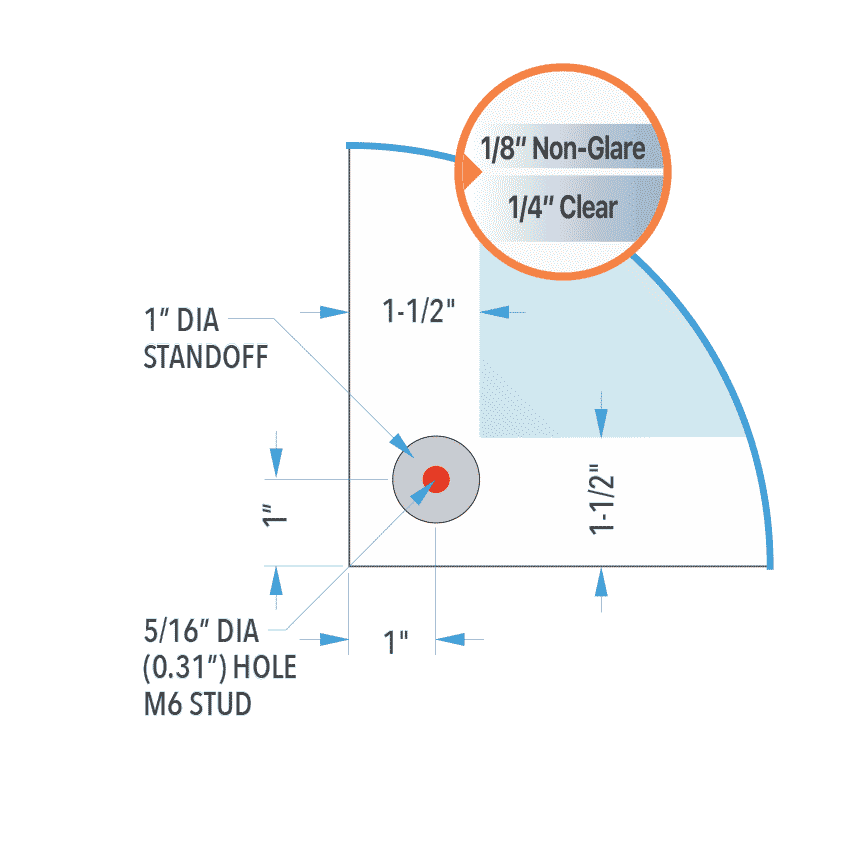

- Panels are drilled for M6 studs. *Select standoff support’s finish type from the selection provided below.
- Optional graphic inserts printed on satin polyester base film are available – follow the links on “Add-ons Tab” below.
ECONOMY OPTION: These frames are also available with 1/8″ clear front Poster Display Kit #KASP-220
*Acrylic Frames are Made-to-Order (MTO) – All sales are final, no returns, no exchanges. Please read our WebStore “Terms & Conditions Policy“.
Product Description
Panoramic Acrylic Poster Frames with Standoffs – set of 1/4″ Clear and 1/8″ Non-Glare Acrylic Panels with Laser-Cut Polished Edges
PANEL/INSERT SIZES:
Panel Size: 15” x 39” / Insert Size: 12” x 36” (3:1 Ratio)
Panel Size: 17” x 45” / Insert Size: 14” x 42” (3:1 Ratio)
Panel Size: 19” x 43” / Insert Size: 16” x 40”
Panel Size: 19” x 51” / Insert Size: 16” x 48” (3:1 Ratio)
Panel Size: 21” x 51” / Insert Size: 18” x 48”
Panel Size: 21” x 57” / Insert Size: 18” x 54” (3:1 Ratio)
Panel Size: 23” x 55” / Insert Size: 20” x 52”
KIT INCLUDES:
14ASP-*PANEL SIZE*/H-D6-M6 – Clear Acrylic Back Panel – with holes for M6 Studs (1 ea) / *Choose panel size above.
18ASP-*PANEL SIZE*NG/H-D6-M6 – Non-Glare Acrylic Front Panel – with holes for M6 Studs (1 ea) / *Choose panel size above.
WSM2525-M6 (*AL/SS) – 1″ Dia. x 1″ Standoff Support (6 ea) / *Select standoff finish type above.
P75-TWL – Twist-n-Lock Drywall Anchor Set (6 ea)
AVAILABILITY: 2-5 Bus. Days (Fabrication and Delivery Time)
FINISHES: Mounting Hardware is supplied in satin anodized or natural brushed stainless steel finishes as standard. Panoramic Acrylic Poster Frames are made of high-quality 1/4″ thick clear back and 1/8″ thick non-glare front.
CUSTOMIZATIONS: We custom fabricate Acrylic Poster Frames using clear, non-glare, matte black, matte white, or frost acrylic as standard. For pricing on custom sizes please send us a detailed description with expected time-line using our Quote Request Form
Attributes
| Insert Size | 12" x 36", 14" x 42", 16" x 40", 16" x 48", 18" x 48", 18" x 54", 20" x 52" |
|---|---|
| Load Option | |
| Mounting Options | |
| Material Thickness | |
| Graphic Thickness | |
| Finish | Natural Stainless, Clear Acrylic, Non-Glare Acrylic / Anti-Reflective (P99), Satin Anodized |
| Availability |
Cleaning & Handling of Acrylic Display Products
When caring for acrylic accessories, it’s crucial to avoid using incorrect cleaners, as they can cause harm. Never use cleaners containing ammonia, glass cleaners, or furniture polish such as Fantastik, Tilex, Windex, or Clorox, as they can damage your acrylic. Instead, use mild soap and water or products specifically recommended for cleaning acrylic, such as Novus or other Rated Anti-Static Cleaner and Polish for Plastics. When cleaning, use micro-fiber disposable low lint cloths designed for acrylic and other plastics, and avoid using a dry cloth or your hand. Using the wrong cleaner can lead to immediate or delayed damage, weakening structural joints and causing cracking. During installation, handle acrylic with care to prevent cracking.
Product Limitations
Acrylic is not as rigid as glass or metals. Large, flat acrylic sheets, if insufficiently supported, may deform permanently due to continuous loads or even their own weight. Acrylic sheet can be used at temperatures from -30°F (-34°C) up to +190°F (+88°C), depending on the application. It is recommended that temperatures not exceed 160°F (71°C) for continuous service, or 190°F (88°C) for short, intermittent use. Components should not be exposed to high heat sources such as high wattage incandescent lamps, unless the finished product is ventilated to permit the dissipation of heat. Acrylic sheet is a combustible thermoplastic. Precautions should be taken to protect this material from flames and high heat sources.
Acrylic/Plastic Cleaning Kit
Cleaner & Polisher — cleans and brightens acrylic and all hard plastic surfaces. Leaves a shiny polished surface that resists dust and fingerprints. Contains no abrasives or harsh chemicals. Cleans, glazes, and eliminates static charge all in one operation. Recommended for: Acrylic, Plexiglass, Lexan, Vinyl, Glass, and all hard plastics. Use disposable or reusable cleaning cloths.
Add-on Services
- Graphic Inserts Printing
Order high-resolution photographic quality prints to come with your newly purchased display. Inserts are printed onto 9mil satin polyester film and trimmed to sizes specified in each display kit description. To order your prints go to “Printing Services” page and select your print type, size and quantity and add to cart. Use the same page to upload and submit your print files. - Raised Letters / Logo Signage
Order dimensional / raised letters or logos to come with your newly purchased display. Letters are manufactured out of 1/4” thick acrylic and supplied in white or black acrylic with matte (satin) finish face and double-sided tape on the back for wall mounting. To order raised letters go to “Laser-Cut Acrylic Letters” store page and select a font style, letter size, finish, and submit your graphic file. For custom font styles and logos send your vector files to receive an estimate using our “Quote Request Form“. - Graphic Pre-placement
Prints will be placed inside the acrylic sandwich frames before Packing & Shipping – mounted in between the two pieces of acrylic and fixed in place with low-tack (3MTM 9415PC Removable Repositionable) double sided adhesive tape. If you require this option please request an estimate using our “Quote Request Form“.
Install Guide
How to Install Acrylic Poster Frames ❯ DOWNLOAD PDF HERE
More Installation Instructions are available at the Installation Guides / Download Pages. You may search for correct install guides by item code, component SKU, or product description. If you can’t find the correct guide contact us by email – General Inquires & Questions.
