Acrylic Collage Frame with Butted Graphic Panels / Display Kit #KASP-044
From: Original price was: $233.08.$218.77Current price is: $218.77.
Supplied with 1/8″ thick clear back and 1/8″ non-glare front acrylic panels designed to take standard prints, posters, or graphics up to 135 gsm (1 mm, 1/32″) thickness. Optional graphic inserts printed on satin polyester base film are available.
Product Description

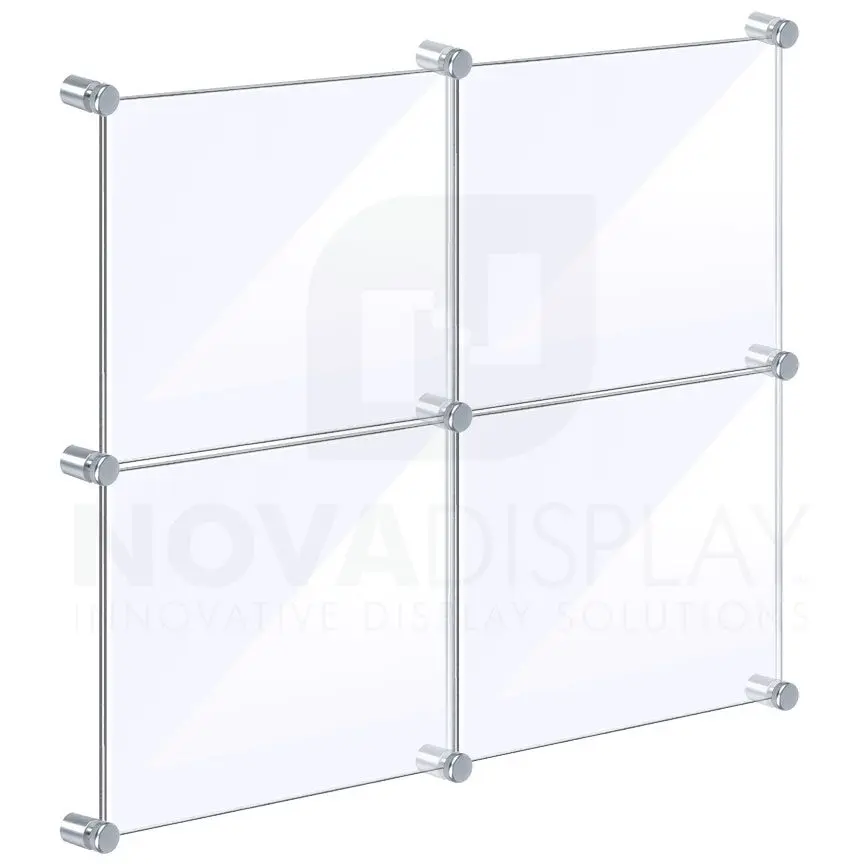

Acrylic Collage Info/Poster Frame Display with Graphic Butted Panels / Wall mounted with standoffs and 4-way hubs / corner connectors
Supplied with 1/8″ thick clear back and 1/8″ non-glare front acrylic panels with laser-cut polished edges. Use to display standard prints, posters, or other interchangeable graphics up to 135 gsm (1 mm, 1/32″) in thickness. Optional graphic inserts printed on satin polyester base film are available.

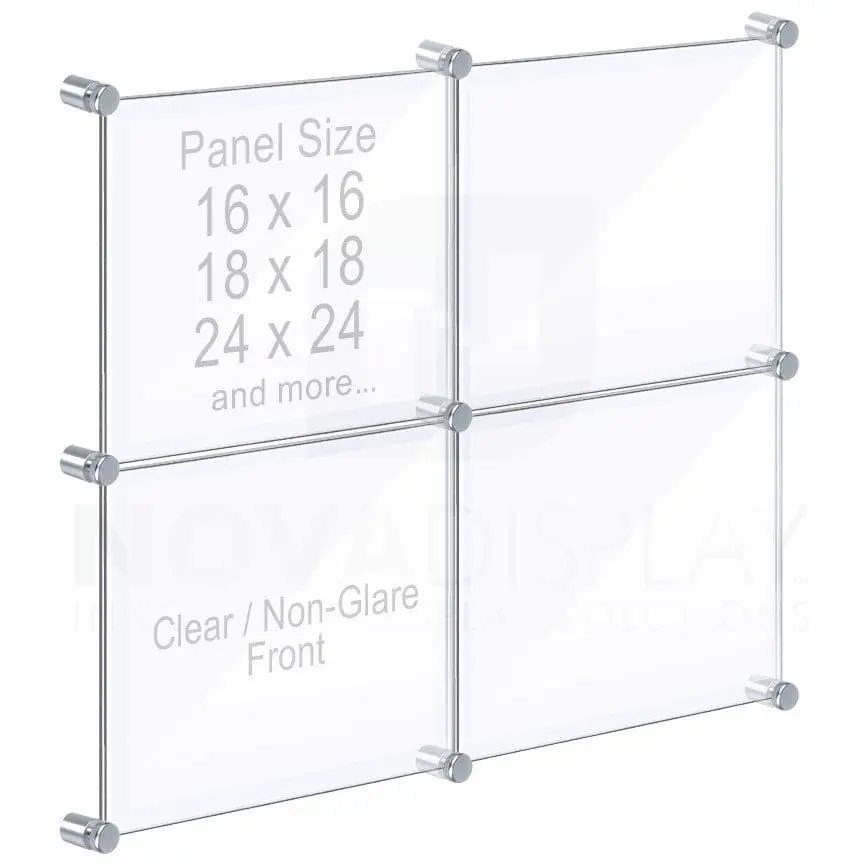

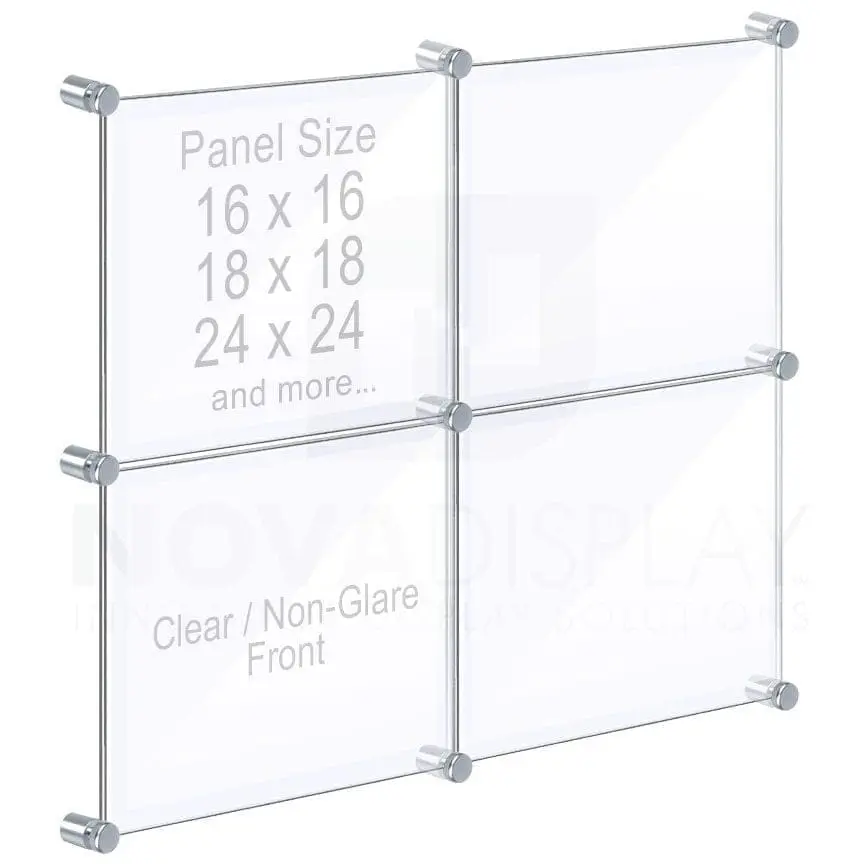

PANEL SIZES:
Panel Size: 12” x 12”
Panel Size: 16” x 16”
Panel Size: 18” x 18”
Panel Size: 18” x 24”
Panel Size: 24” x 24”
KIT INCLUDES:
18ASP-*SIZE* – 1/8″ Clear Acrylic Back Panel w/Miter Corners – No Holes (4 ea)
18ASP-*SIZE*NG – 1/8″ Non-Glare Acrylic Front Panel w/Miter Corners – No Holes (4 ea)
*Choose and match panel sizes in the selection above.
WM15 – 1″ Dia. x 1″ Standoff Support (9 ea)
WM20 – Four Way Spacer / Corner Connector (9 ea)
P75-TWL – Twist-n-Lock Drywall Anchor Set (9 ea)
AVAILABILITY: 2-5 Bus. Days (Fabrication and Delivery Time)
FINISHES: Mounting Hardware is supplied in a satin chrome finish as standard, other finishes on request. The Frameless Graphic Panels are made of high-quality 1/8″ thick clear and 1/8″ non-glare acrylic.
CUSTOMIZATIONS: We custom fabricate Acrylic Poster Frames using clear, non-glare, matte black, matte white, or frost acrylic as standard. For pricing on custom sizes please send us a detailed description with expected time-line using our Quote Request Form
INSTALLATION NOTES: Assembly required.
Attributes
| Panel Size | |
|---|---|
| Load Option | |
| Mounting Options | |
| Material Thickness | |
| Graphic Thickness | |
| Finish | Satin Chrome, Clear Acrylic, Non-Glare Acrylic / Anti-Reflective (P99) |
| Availability |
Cleaning & Handling of Acrylic Display Products
When caring for acrylic accessories, it’s crucial to avoid using incorrect cleaners, as they can cause harm. Never use cleaners containing ammonia, glass cleaners, or furniture polish such as Fantastik, Tilex, Windex, or Clorox, as they can damage your acrylic. Instead, use mild soap and water or products specifically recommended for cleaning acrylic, such as Novus or other Rated Anti-Static Cleaner and Polish for Plastics. When cleaning, use micro-fiber disposable low lint cloths designed for acrylic and other plastics, and avoid using a dry cloth or your hand. Using the wrong cleaner can lead to immediate or delayed damage, weakening structural joints and causing cracking. During installation, handle acrylic with care to prevent cracking.
Product Limitations
Acrylic is not as rigid as glass or metals. Large, flat acrylic sheets, if insufficiently supported, may deform permanently due to continuous loads or even their own weight. Acrylic sheet can be used at temperatures from -30°F (-34°C) up to +190°F (+88°C), depending on the application. It is recommended that temperatures not exceed 160°F (71°C) for continuous service, or 190°F (88°C) for short, intermittent use. Components should not be exposed to high heat sources such as high wattage incandescent lamps, unless the finished product is ventilated to permit the dissipation of heat. Acrylic sheet is a combustible thermoplastic. Precautions should be taken to protect this material from flames and high heat sources.
Acrylic/Plastic Cleaning Kit
Cleaner & Polisher — cleans and brightens acrylic and all hard plastic surfaces. Leaves a shiny polished surface that resists dust and fingerprints. Contains no abrasives or harsh chemicals. Cleans, glazes, and eliminates static charge all in one operation. Recommended for: Acrylic, Plexiglass, Lexan, Vinyl, Glass, and all hard plastics. Use disposable or reusable cleaning cloths.
Install Guide
How to Install Acrylic Frameless Frames with Standoff Supports ❯ DOWNLOAD THE PDF HERE.
