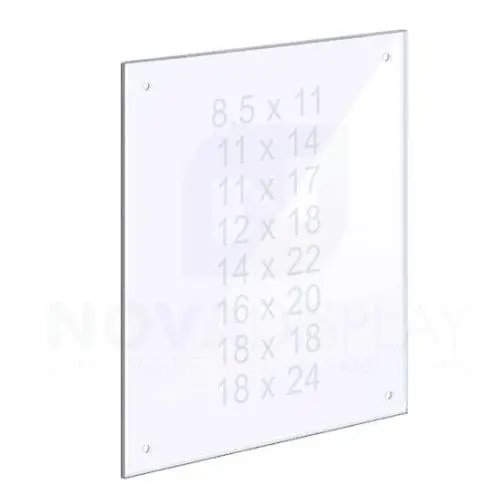

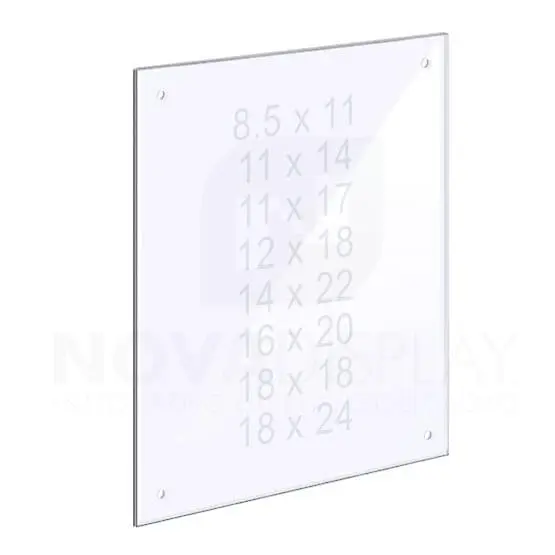

1/8″ Clear Acrylic Panel – with Holes for M4 Studs
$9.10 – $33.08
1/8″ Clear acrylic graphic panel with polished edges – with holes for M4 Studs. *Always use with a matching front piece of 1/8″ non-glare acrylic.
Note: Acrylic panels outside dimensions are larger then specified insert format by 1.25″ on all sides. Panels are listed by insert size.
*Acrylic Frames & Blanks are Made-to-Order (MTO) – All sales are final, no returns, no exchanges. Please read our WebStore “Terms & Conditions Policy“.
Product Description

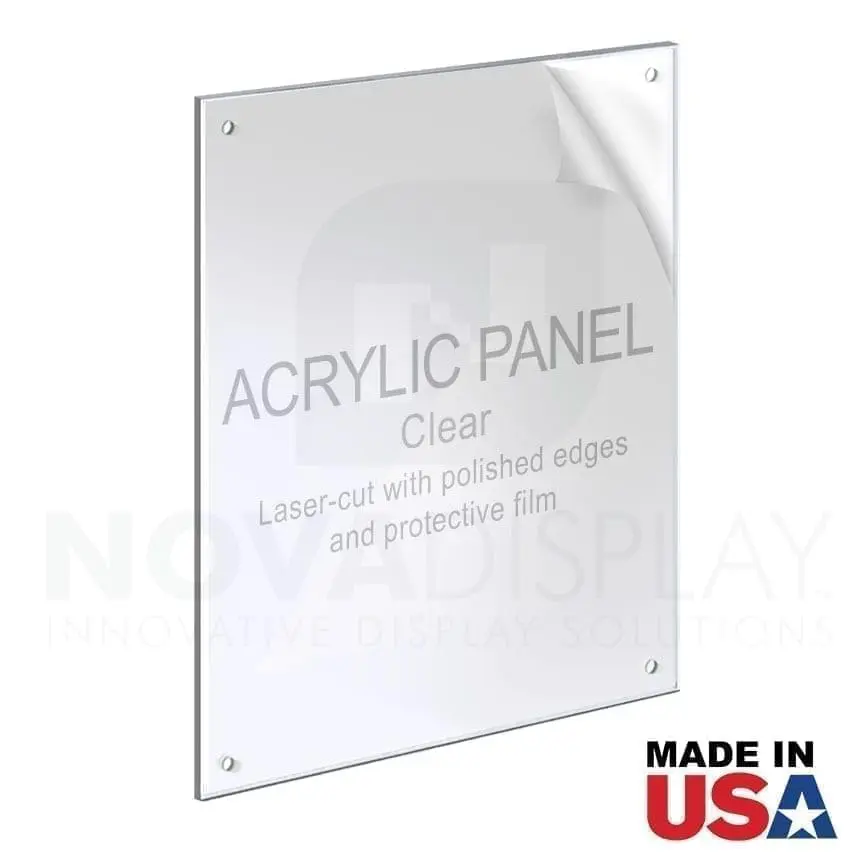

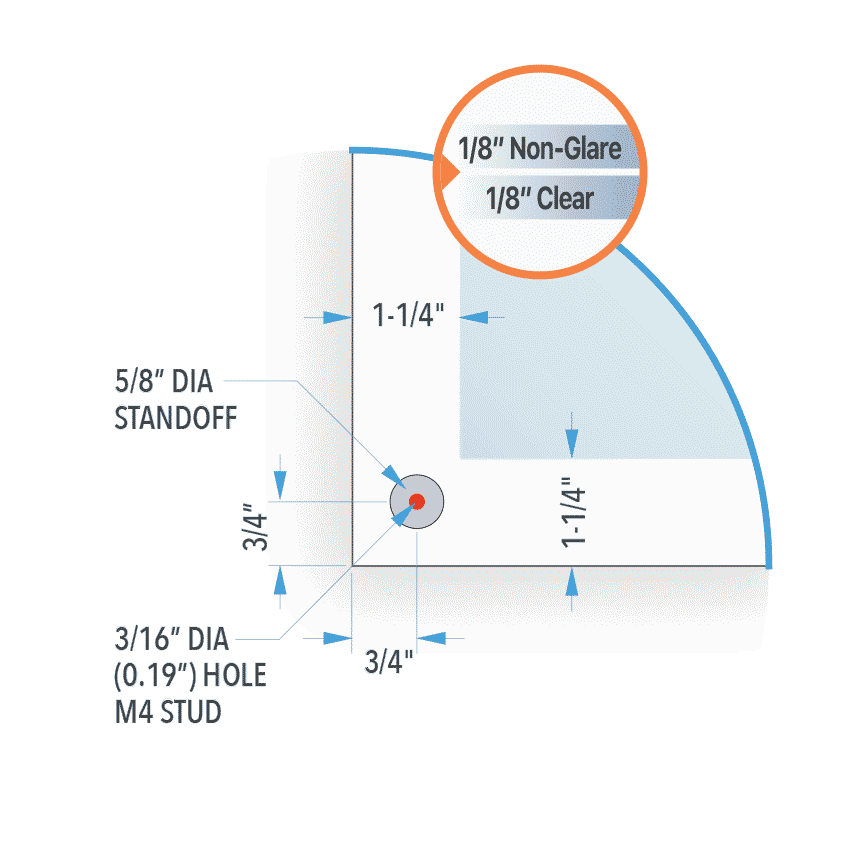

1/8″ Clear Acrylic Panel with Holes for M4 Studs – Polished Edges. Panel Hole Size 5mm (3/16″)
Frameless acrylic panels/frames are designed for displaying art, documents, certificates, photos, posters, or other interchangeable printed inserts. The panels are drilled for mounting to wall using our wall-mounts / standoff supports with M4 stud-caps or suspended with cable/rod display systems.
Use 18ASP-PANEL M4 MD as the back support panel for poster inserts. *Always use with a matching front piece of 1/8″ non-glare acrylic. Sold separately.

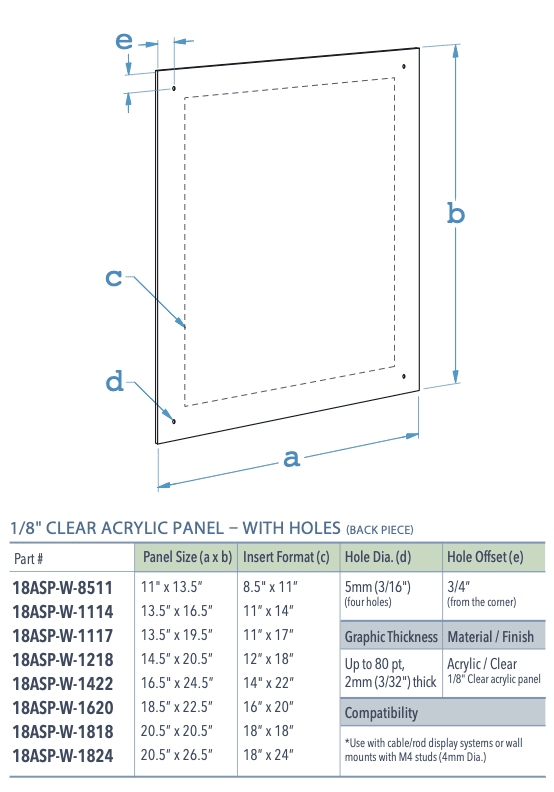

- Insert Size: 8.5” x 11” / Panel Size: 11” x 13.5”
- Insert Size: 11” x 14” / Panel Size: 13.5” x 16.5”
- Insert Size: 11” x 17” / Panel Size: 13.5” x 19.5”
- Insert Size: 12” x 18” / Panel Size: 14.5″ x 20.5″
- Insert Size: 14” x 22” / Panel Size: 16.5″ x 24.5″
- Insert Size: 16” x 20” / Panel size: 18.5″ x 22.5″
- Insert Size: 18” x 18” / Panel Size: 20.5″ x 20.5″
- Insert Size: 18” x 24” / Panel Size: 20.5″ x 26.5″
Frameless style clear/non-glare acrylic panel/frame sets are available in various sizes to fit most standard poster–inserts in the small–medium format range. Poster/graphic is surrounded by 1-1/4″ clear border on all sides. Use with inserts up to 80 pt, 2mm (3/32″) thick. Frames can be mounted in either portrait or landscape orientation. To explore our entire selection of our frameless acrylic frames, crafted exclusively from premium-grade acrylic, click on the link below
Additional Information
| Panel Size | 11" x 13-1/2", 13-1/2" x 16-1/2", 13-1/2" x 19-1/2", 14-1/2" x 20-1/2", 16-1/2" x 24-1/2", 18-1/2" x 22-1/2", 20-1/2" x 20-1/2", 20-1/2" x 26-1/2" |
|---|---|
| Insert Size | 8.5" x 11", 11" x 14", 12" x 18", 11" x 17", 14" x 22", 16" x 20", 18" x 18", 18" x 24" |
| Width | 11", or 13-1/2", 13-1/2", or 16-1/2", 13-1/2", or 19-1/2", 14-1/2", or 20-1/2", 16-1/2", or 24-1/2", 18-1/2", or 22-1/2", 20-1/2", 20-1/2", or 26-1/2" |
| Load Option | |
| Compatibility | Use with cable/rod display systems or wall mounts with M4 studs |
| Weight | |
| Mounting Options | |
| Graphic Thickness | |
| Material Thickness | |
| Panel Hole Size | |
| Finish | |
| Availability | Standard Stock Item, Limited-Stock Item / Made to Order (5-10 Days) |
Cleaning & Handling of Acrylic Display Products
When caring for acrylic accessories, it’s crucial to avoid using incorrect cleaners, as they can cause harm. Never use cleaners containing ammonia, glass cleaners, or furniture polish such as Fantastik, Tilex, Windex, or Clorox, as they can damage your acrylic. Instead, use mild soap and water or products specifically recommended for cleaning acrylic, such as Novus or other Rated Anti-Static Cleaner and Polish for Plastics. When cleaning, use micro-fiber disposable low lint cloths designed for acrylic and other plastics, and avoid using a dry cloth or your hand. Using the wrong cleaner can lead to immediate or delayed damage, weakening structural joints and causing cracking. During installation, handle acrylic with care to prevent cracking.
Product Limitations
Acrylic is not as rigid as glass or metals. Large, flat acrylic sheets, if insufficiently supported, may deform permanently due to continuous loads or even their own weight. Acrylic sheet can be used at temperatures from -30°F (-34°C) up to +190°F (+88°C), depending on the application. It is recommended that temperatures not exceed 160°F (71°C) for continuous service, or 190°F (88°C) for short, intermittent use. Components should not be exposed to high heat sources such as high wattage incandescent lamps, unless the finished product is ventilated to permit the dissipation of heat. Acrylic sheet is a combustible thermoplastic. Precautions should be taken to protect this material from flames and high heat sources.
Acrylic/Plastic Cleaning Kit
Cleaner & Polisher — cleans and brightens acrylic and all hard plastic surfaces. Leaves a shiny polished surface that resists dust and fingerprints. Contains no abrasives or harsh chemicals. Cleans, glazes, and eliminates static charge all in one operation. Recommended for: Acrylic, Plexiglass, Lexan, Vinyl, Glass, and all hard plastics. Use disposable or reusable cleaning cloths.
Composition and Materials:
All acrylic fixtures used with our cable/rod or rail display systems are made from high-quality acrylic from best known brands like Acrylite®, Plexiglass®, Lucite®, etc. Acrylic is a lightweight, rigid thermoplastic material that has many times the breaking resistance of standard window-pane glass and it is available in various thicknesses. It is suitable for a variety of commercial applications and can be easily sawed, machined, laser cut, thermoformed and cemented.
Colors / Finishes:
Acrylic sheets are readily available in a variety of color and finishes – clear acrylic is used primarily for its superior optical clarity and rigidity; non-glare (non-reflective) acrylic is used as frame or display front cover and helps to reduce the glare from spot lights or sunny windows; UV filtering acrylic is used for protection from the irreversible effects of UV damage from both natural and artificial light; frosted acrylic is used in special background and decorative screen designs; and color acrylic is used in custom sign and display designs.
Product Limitations:
Acrylic sheet is not as rigid as glass or metals. Large, flat acrylic sheets, if insufficiently supported, may deform permanently due to continuous loads or even their own weight. Acrylic sheet can be used at temperatures from -30°F (-34°C) up to +190°F (+88°C), depending on the application. It is recommended that temperatures not exceed 160°F (71°C) for continuous service, or 190°F (88°C) for short, intermittent use. Components should not be exposed to high heat sources such as high wattage incandescent lamps, unless the finished product is ventilated to permit the dissipation of heat. Acrylic sheet is a combustible thermoplastic. Precautions should be taken to protect this material from flames and high heat sources. Despite its high durability some simple steps should be employed when handling and cleaning acrylic to avoid staining, cracking and damage. Never use cleaners containing ammonia, glass cleaners or furniture polish, they will all harm your acrylic fixtures. Use only mild soap and water or products specifically recommended for cleaning acrylic such as Craftics, Novus, or other Rated Anti-Static Cleaner & Polish for Plastics. Use micro-fiber disposable low lint cloths that is specially designed for cleaning acrylic and other plastic. Never use a dry cloth or your hand to clean your acrylic.
