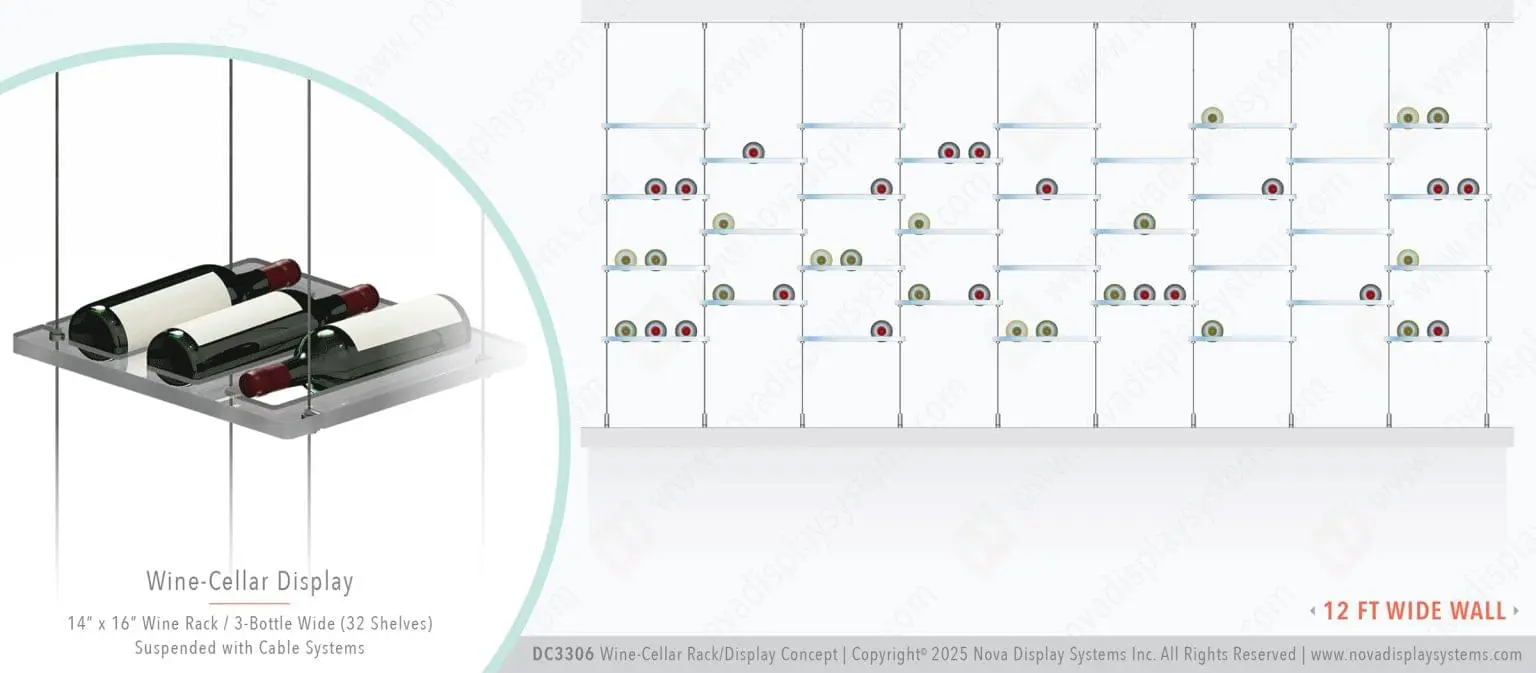

DC3306 Wine-Cellar Display Rack with Cable Suspended Shelves (12FT WALL)
$2,661.36 – $5,224.68 Select options This product has multiple variants. The options may be chosen on the product page

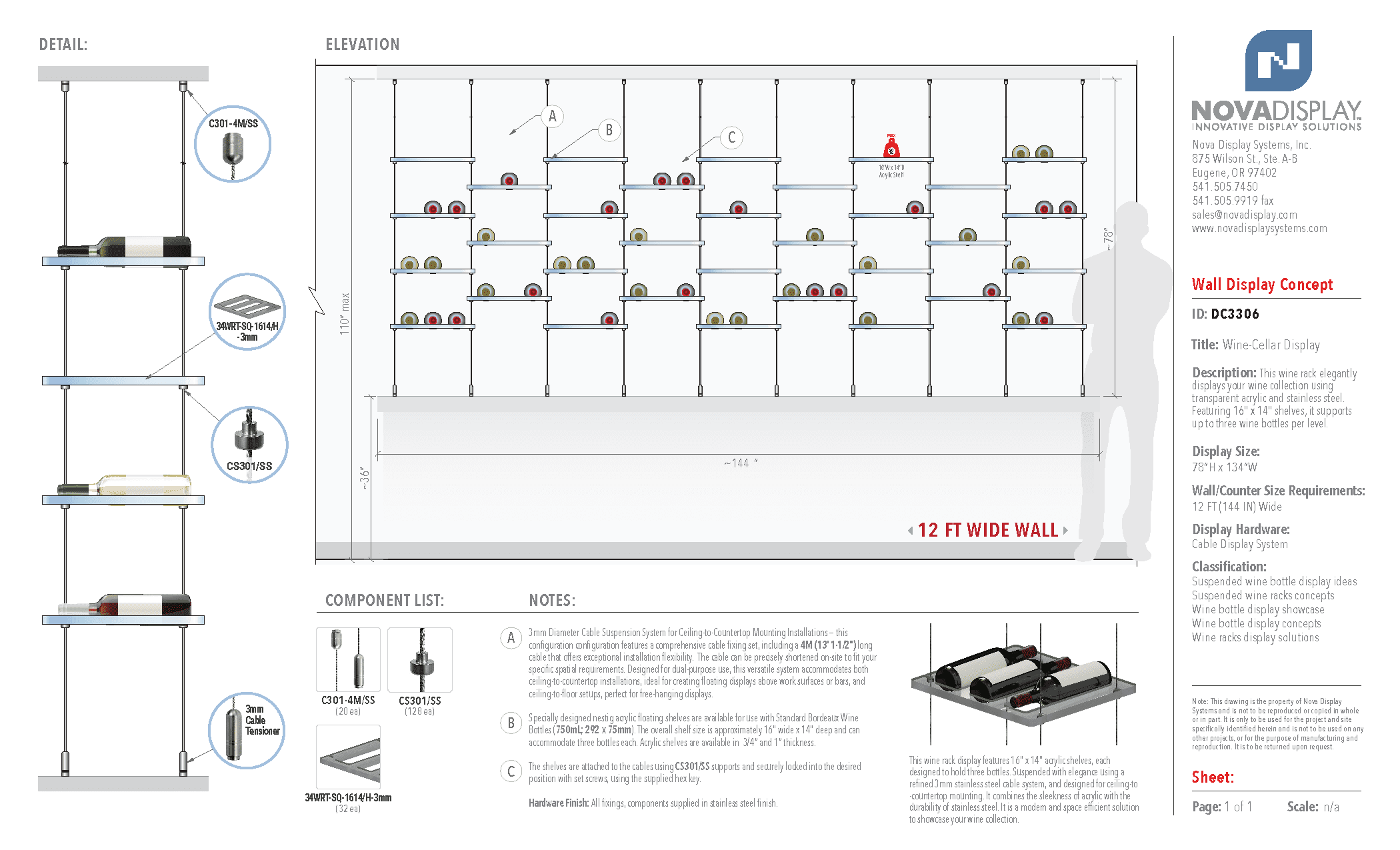

DC3306 Wine-Cellar Display Rack with Cable Suspended Acrylic Shelves
Description:
Wine-Cellar Display with 3mm Cable System — This elegant wine rack display features 16″ x 14″ acrylic shelves, each designed to showcase three bottles. A refined 3mm stainless steel cable system suspends the shelves, creating a striking visual effect. Engineered for ceiling-to-countertop installations, this display combines sleek acrylic and durable stainless steel for a modern, space-efficient solution to elevate your wine collection. The nest shelves are crafted from premium clear acrylic, available in 3/4″ or 1″ thickness, and feature a sophisticated satin/matte edge finish, adding a touch of elegance.
3mm Diameter Cable Suspension System for Versatile Mounting — This configuration features a comprehensive cable fixing set and a 4M (13′ 1-1/2″) long cable, offering exceptional installation flexibility. The cable can be precisely shortened on-site to fit specific spatial requirements. Designed for dual-purpose use, this system accommodates ceiling-to-countertop installations, ideal for floating displays, and ceiling-to-floor setups for free-hanging displays.
Custom-Designed Shelving for Optimal Wine Storage — Tailored for standard Bordeaux wine bottles (750mL; 292 x 75mm), our specially designed clear acrylic nest shelves feature a refined satin/matte edge. Each shelf, measuring approximately 16″ wide x 14″ deep, is designed to cradle two to three wine bottles, ensuring your prized vintages are displayed with elegance and security.
Size Requirements:
Display Capacity: 96 Bottles
Overall Display Size: 134″W x 78″H
Wall Size: 12 ft (144 in) Wide
Component List:
- 34WRT-SQ-1614/H-3mm (*10WRT-SQ-1614/H-3mm) – 3/4″ or 1″ Thick Clear Acrylic Nest Shelves for Three Bottles (32 ea) / *Choose shelf thickness on the product page.

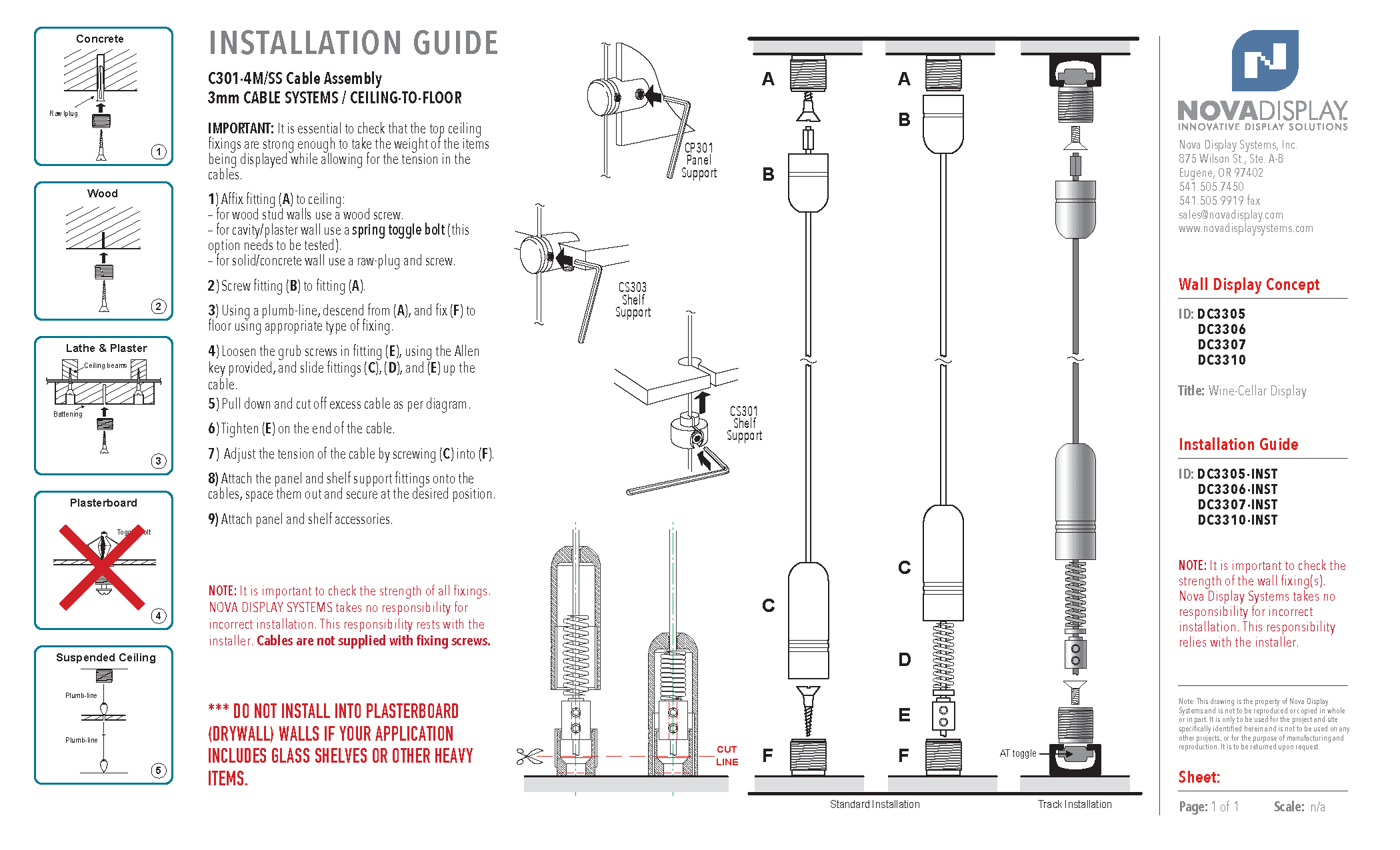

- C301-4M/SS – 3mm Cable Suspension Fixing Kit for Ceiling-to-Countertop or Ceiling-to-Floor Installations (20 ea)
- CS301/SS – Support for Drilled or Slotted Shelves (128 ea)
Key Features:
-
Elegant Display — Modern, minimalist design that elevates interior spaces.
-
Striking Visual Effect — Refined 3mm stainless steel cable suspension system.
-
Flexible Installation — Engineered for versatile ceiling-to-countertop or ceiling-to-floor configurations
-
Modern Design — Combines sleek acrylic and durable stainless steel.
-
Space-Efficient Solution — Elevates wine collection presentation in any space.
-
Premium Materials — Nest shelves crafted from clear acrylic in 3/4″ or 1″ thickness.
-
Sophisticated Finish — Satin/matte edge on nest shelves adds elegance.
-
Adjustable Cable Length — 4M (13′ 1-1/2″) cable can be shortened on-site.
-
Optimized for Bordeaux Bottles — Custom-designed nest shelves cradle standard 750mL Bordeaux bottles.
-
Secure Storage — Shelves ensure prized vintages are displayed with elegance and security.
Finishes:
Mounting hardware features a stainless steel finish. The high-quality acrylic nest shelves are made with 3/4″ or 1″ thick clear acrylic with a refined satin/matte edge.
Availability & Customizations:
- Fabrication Time: 10-15 Bus. Days
- For help with a new design please send us a project scope statement or detailed description with expected time-line using our Quote Request Form
