DC3304 Wine-Cellar Display Rack with Rod Suspended Shelves (12FT WALL)
$3,605.94 – $4,373.46 Select options This product has multiple variants. The options may be chosen on the product page

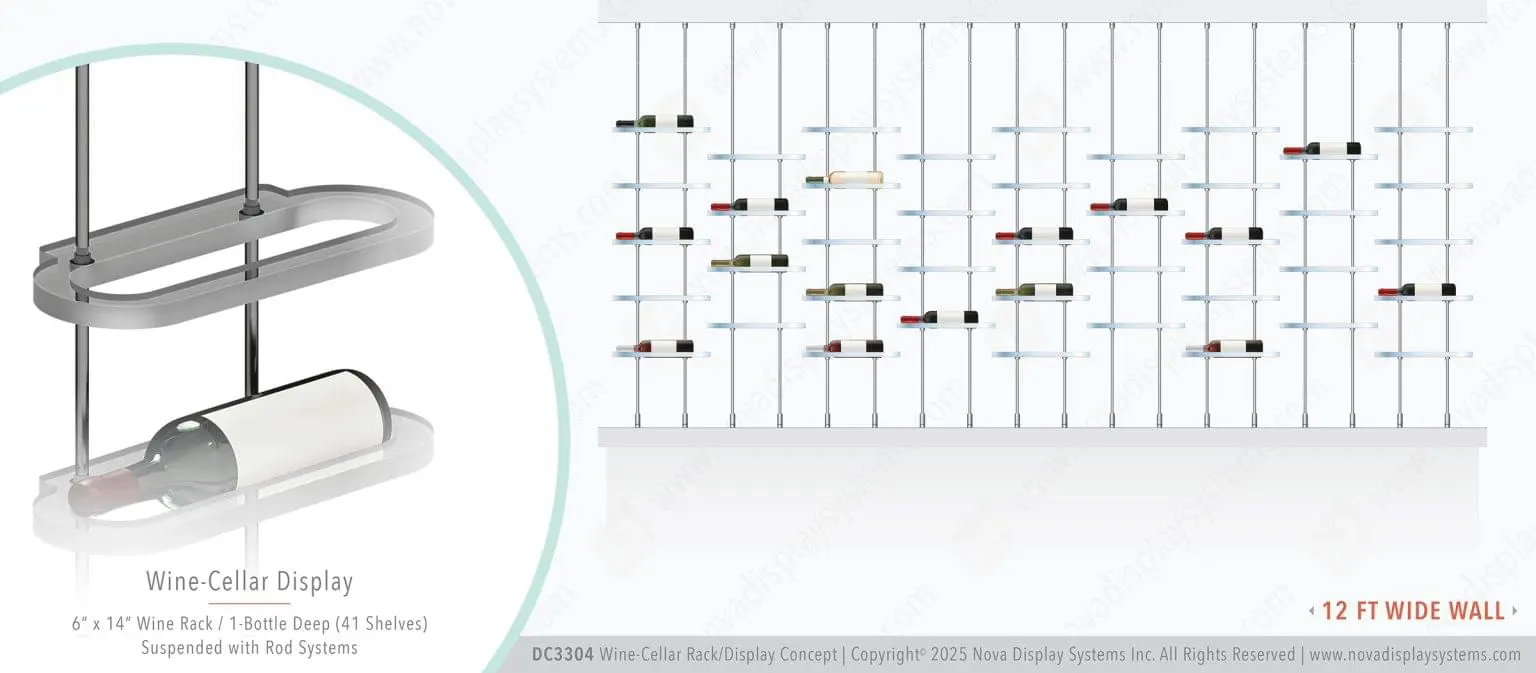

DC3304 Wine-Cellar Display Rack with Rod Suspended Acrylic Shelves
Description:
Wine-Cellar Display with 10mm Rod System — Elevate your wine collection with this sophisticated rack display, showcasing individual bottles on elegant oval-shaped acrylic nest shelves. Precision-suspended using our robust 10mm stainless steel rod system, this design is engineered for ceiling-to-countertop installations. It seamlessly integrates sleek acrylic with durable stainless steel, offering a contemporary and space-efficient solution that transforms your wine storage into a visual masterpiece. The oval-shaped nest shelves, crafted from premium 3/4″ or 1″ thick clear acrylic, feature a refined satin/matte edge, adding a touch of sophistication to your display.

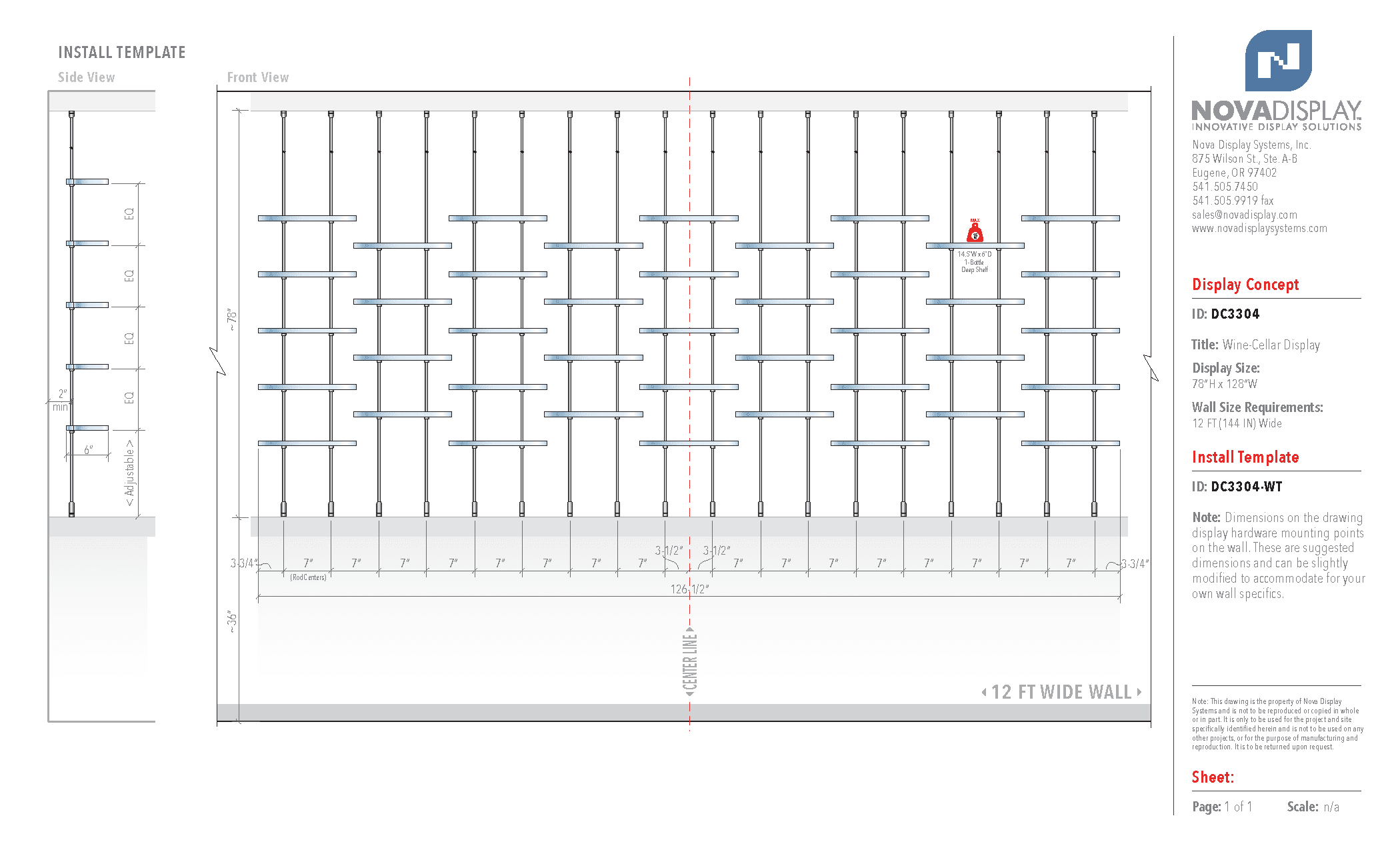

10mm Diameter Rod Suspension System for Versatile Mounting — This adaptable configuration includes a set of 1.5M (4′ 11-1/16″) and 0.5M (1′ 7-11/16″) long threaded rods, which can be combined to span up to 2.0M (6′ 5-3/4″) in height. Rods are easily adjustable or can be shortened on-site during installation to fit your specific needs. For added versatility, standard stainless steel rods with M6 threads are available separately, allowing you to transform this display into a ceiling-to-floor configuration.
Custom-Designed Shelving for Optimal Wine Storage — Our specially designed clear acrylic nest shelves, featuring a refined satin/matte edge, are tailored for standard Bordeaux wine bottles (750mL; 292 x 75mm). Each shelf, measuring approximately 14.5″ wide x 6″ deep, is designed to cradle a single bottle, ensuring your prized vintages are displayed with the utmost elegance and security.
Size Requirements:
Display Capacity: 41 Bottles
Overall Display Size: 128″W x 78″H
Wall Size: 12 ft (144 in) Wide

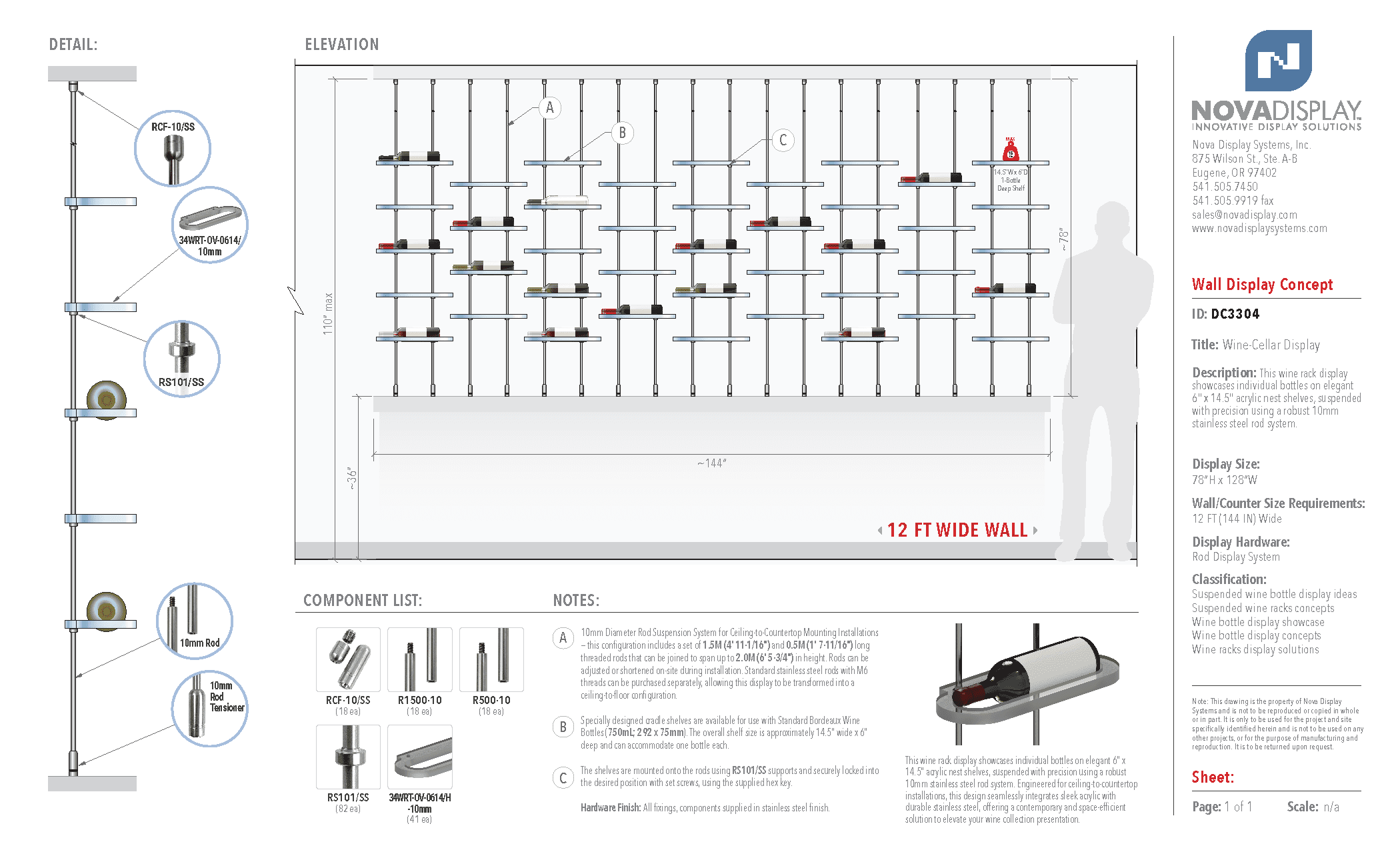

Component List:
- 34WRT-OV-0614/H-10mm (*10WRT-OV-0614/H-10mm) – 3/4″ or 1″ Thick Clear Acrylic Oval-Shape Nest Shelves for Single Bottle (41 ea) / *Choose shelf thickness on the product page.
- RCF-10/SS – Ceiling-to-Floor Fixing Kit for 10mm Rod Suspension (18 ea)
- R1500-10 – 10mm Stainless Steel Rod 1.5M (4′ 11-1/16”) Long / M6 Right-Hand Threaded (18 ea)
- R500-10 – 10mm Stainless Steel Rod 0.5M (1′ 7-11/16”) Long / M6 Right-Hand Threaded (18 ea)
- RS101/SS – Support for Drilled or Slotted Shelves (82 ea)
Key Features:
-
Sleek Aesthetics — Modern, minimalist design that elevates interior spaces
-
Versatile Display — Single-bottle nest shelves for optimal visibility and presentation
-
Premium Construction — High-quality acrylic and stainless steel ensure durability and timeless style
-
Flexible Installation — Engineered for versatile ceiling-to-countertop or ceiling-to-floor configurations
-
Custom Shelving — Oval-shaped nest shelves crafted from premium 3/4″ or 1″ thick clear acrylic
-
Space-Efficient Design — Maximizes storage while maintaining a contemporary look
-
Refined Finish — Satin/matte edge on shelves for a sophisticated, polished appearance
-
Seamless Integration — Harmonious blend of transparent acrylic and sleek stainless steel
-
Adaptable Height — Adjustable rod system to fit various ceiling heights
-
Easy Maintenance — Smooth surfaces for effortless cleaning and long-lasting beauty
Finishes:
Mounting hardware features a stainless steel finish. The high-quality acrylic nest shelves are made with 3/4″ or 1″ thick clear acrylic with a refined satin/matte edge.
Availability & Customizations:
- Fabrication Time: 10-15 Bus. Days
- For help with a new design please send us a project scope statement or detailed description with expected time-line using our Quote Request Form
