DC3300 Wine-Cellar Display Rack with Rod Suspended Shelves (10FT WALL)
$5,234.50Original price was: $5,234.50.$4,711.05Current price is: $4,711.05. Add to cart
DC3300 Wine-Cellar Display Rack with Rod Suspended Cradle Shelves

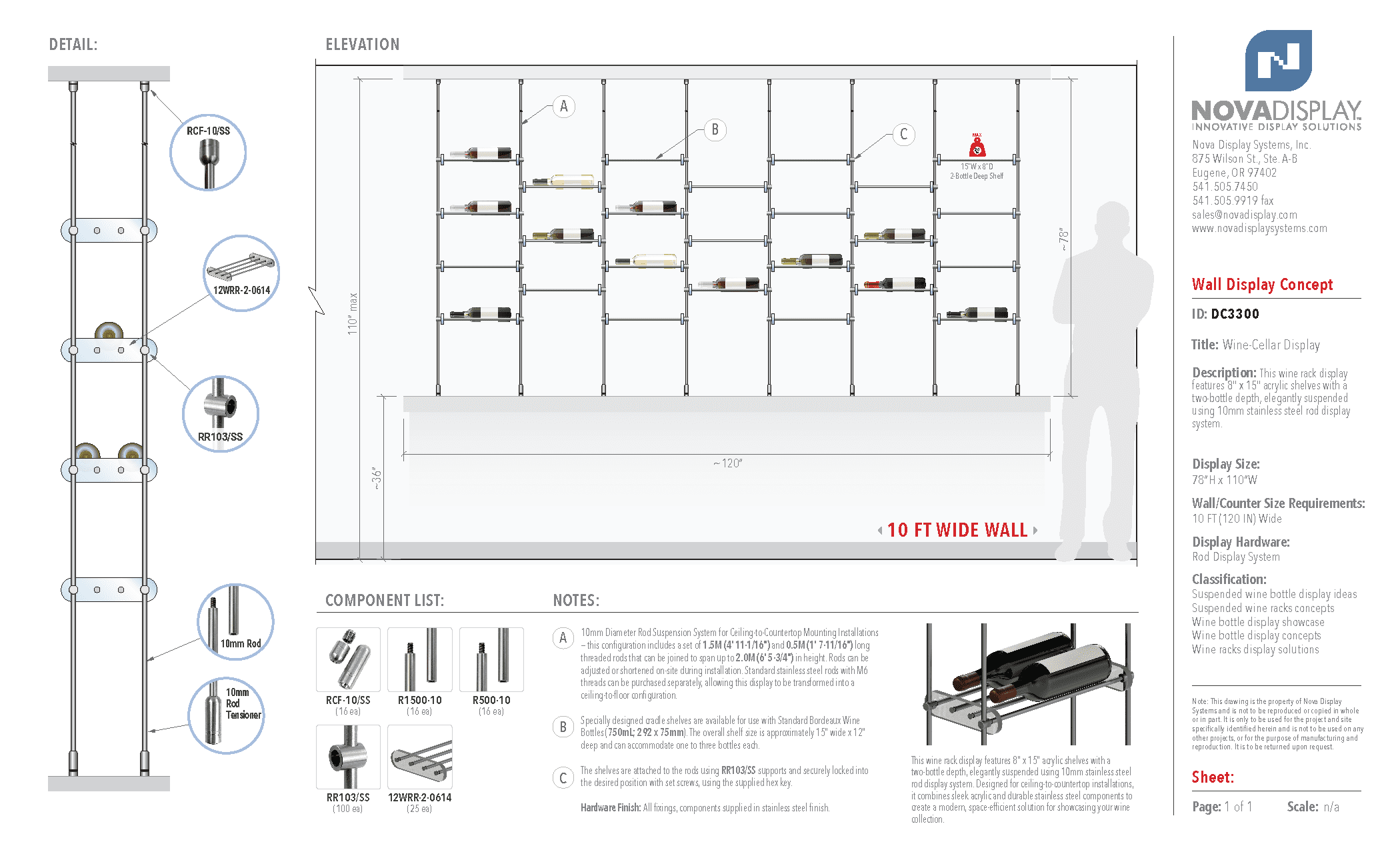

![DC3300 Wine-Cellar Display Rack with Rod Suspended Shelves (10FT WALL)](https://www.novadisplaysystems.com/wp-content/uploads/2025/02/DC3300-PREVIEW-Wine-cellar-display-idea-concept-with-rod-suspended-rack-shelves-1536x673.png)
Description:
Wine-Cellar Display with 10mm Rod System — Transform your ordinary wine cellar into a stunning showcase with our cutting-edge display solution. Featuring sleek acrylic shelves with a rod-grid assembly for two-bottle depth storage, each elegantly suspended by our robust 10mm stainless steel rod system, this display is designed for sophisticated ceiling-to-countertop installations. The seamless blend of transparent acrylic and polished stainless steel creates a contemporary, space-efficient solution that elevates the presentation of your curated wine collection. Perfect for both residential cellars and upscale commercial venues, this innovative system transforms your wine storage into a captivating visual centerpiece, enhancing the overall ambiance of any space while maximizing storage efficiency, allowing you to showcase your prized vintages with unparalleled elegance.
10mm Diameter Rod Suspension System for Ceiling-to-Countertop Mounting Installations — This configuration includes a set of 1.5M (4′ 11-1/16″) and 0.5M (1′ 7-11/16″) long threaded rods that can be joined to span up to 2.0M (6′ 5-3/4″) in height. Rods can be adjusted or shortened on-site during installation. Standard stainless steel rods with M6 threads can be purchased separately, allowing this display to be transformed into a ceiling-to-floor configuration.
The cradle shelves are specially designed for use with standard Bordeaux wine bottles (750mL; 292 x 75mm). The overall shelf size is approximately 15″ wide x 8” deep and can accommodate one to two bottles each.
Size Requirements:
Display Capacity: 50 Bottles
Overall Display Size: 110″W x 78″H
Wall Size: 10 ft (120 in) Wide
Component List:
- 12WRR-2-0614 – Two-Bottle Deep Cradle Shelf with Rod-Grid Assembly and 1/2″ Thick Clear Acrylic Support Sides (25 ea)
Shelf Size: 15″W x 8″H - RCF-10/SS – Ceiling-to-Floor Fixing Kit for 10mm Rod Suspension (16 ea)
- R1500-10 – 10mm Stainless Steel Rod 1.5M (4′ 11-1/16”) Long / M6 Right-Hand Threaded (16 ea)
- R500-10 – 10mm Stainless Steel Rod 0.5M (1′ 7-11/16”) Long / M6 Right-Hand Threaded (16 ea)
- RR103/SS – Support Single w/Boss for Shelves (100 ea)
Key Features:
-
Sleek Aesthetics — Modern, minimalist design that enhances interior spaces
-
Versatile Display — Accommodates 1 to 2 bottles per shelf for optimal visibility
-
Premium Construction — High-quality materials ensure durability and timeless style
-
Customizable Height — Adaptable to various spatial requirements
-
Easy Accessibility — Convenient bottle selection and retrieval
-
Complementary Design — Seamlessly integrates with modern interiors
-
Professional Finish — Clear acrylic and stainless steel components add sophisticated flair
-
Optimal Preservation — Design allows for proper wine storage conditions
Finishes:
Mounting hardware features a stainless steel finish. The high-quality acrylic cradle shelves incorporate a rod-grid assembly and 1/2″ thick clear acrylic support sides with a refined satin/matte edge.
Availability & Customizations:
- Fabrication Time: 10-15 Bus. Days
- For help with a new design please send us a project scope statement or detailed description with expected time-line using our Quote Request Form
