DC3101 Product Wall Display Concept (10FT WALL)
$1,972.04 – $2,042.46 Select options This product has multiple variants. The options may be chosen on the product page
DC3101 Product Wall Display Concept
Description:
Product Wall Display – incorporates acrylic easy access holders for 14” x 22“ info/poster inserts and 15“ x 8” deep acrylic shelves suspended with wall-to-wall cable display system. The 1.5mm cable suspension system comes in a double-cable kit assembly. The cables are elegant and obscure, yet incredibly strong. The floating on cable acrylic shelves are fully adjustable. Use to display collectibles, promotional products, or other lightweight merchandise. Display comes with cable suspension components made of brass with satin chrome finish, clear acrylic shelves with flat polished edges, and clear or non-glare (non-reflective) acrylic frames. *Select acrylic finish type on the product page.
Size Requirements:

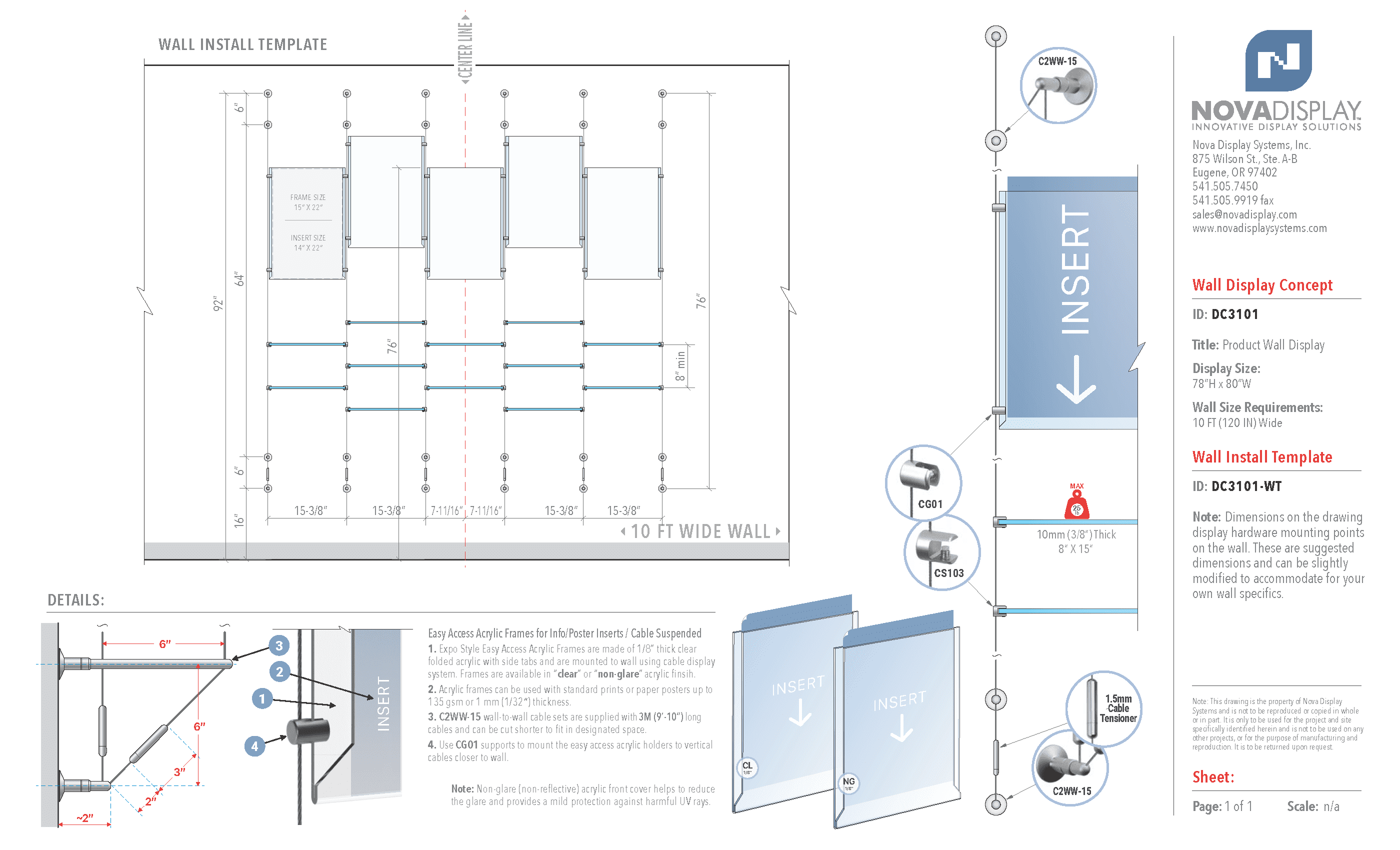

Overall Display Size: 80″W x 78″H
Wall Size: 10 ft (120 in) Wide

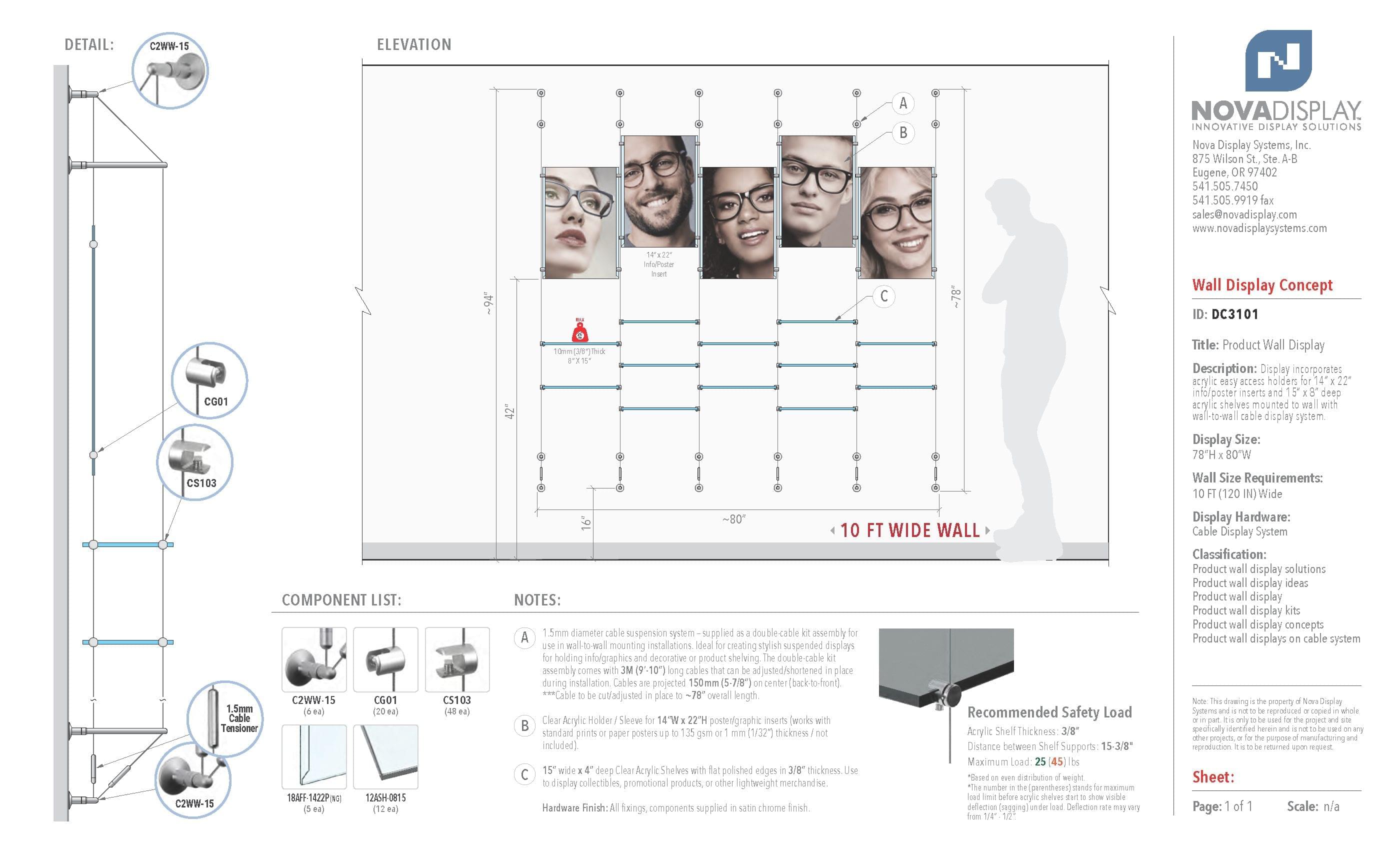

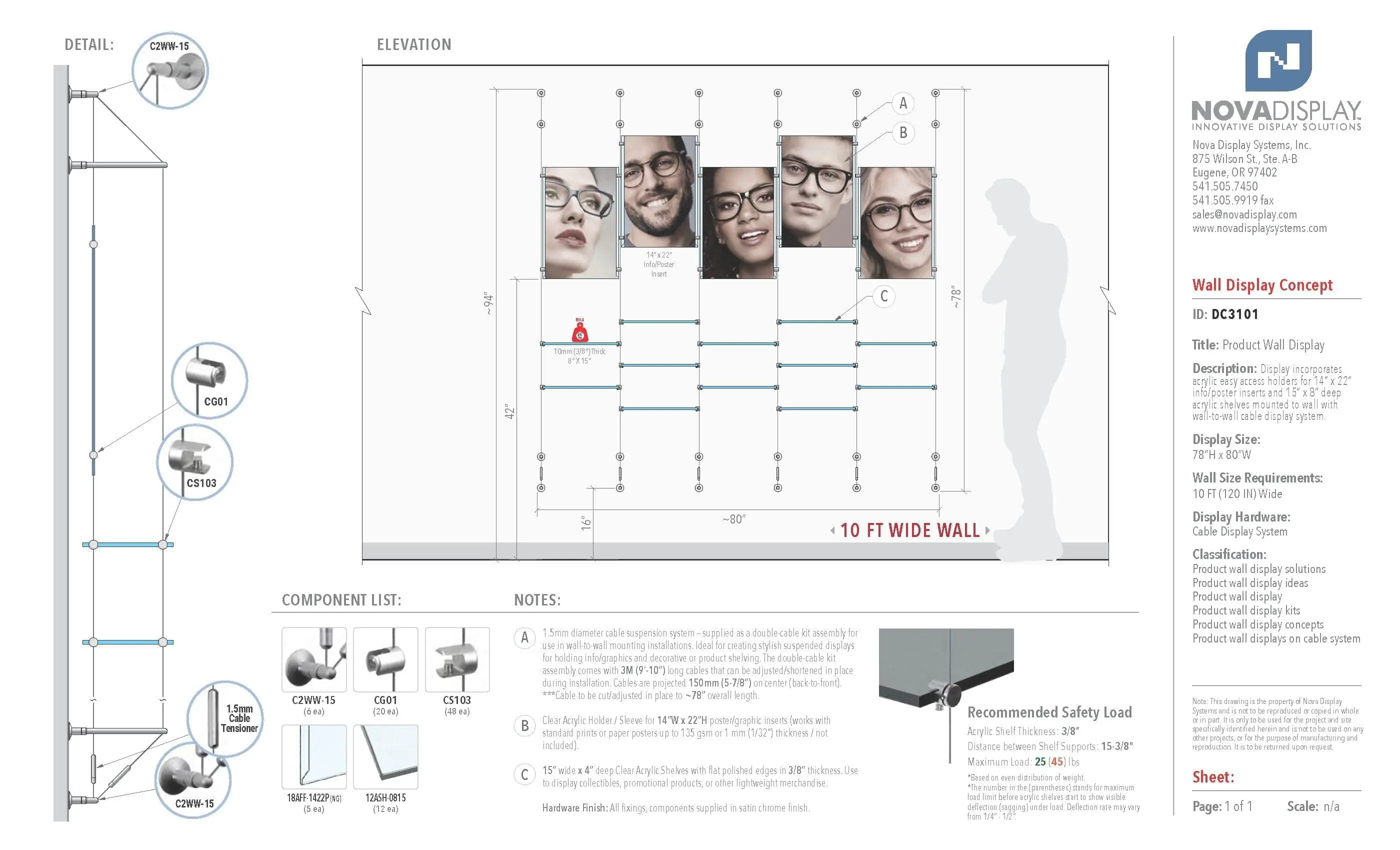

Component List:
- 18AFF-1422P (*NG) – Clear or Non-Glare Easy Access Acrylic Holder (5 ea) / *Select finish type above.
Insert Size: 14″W x 22″H - 38ASH-0815 – 3/8″ thick Clear Acrylic Shelf with Polished Edges (12 ea)
Shelf Size: 15″W x 8″Deep - C2WW-15 – Cable Suspension Kit in wall-to-wall double-cable assembly configuration (6 ea)
- CG01 – Panel Support (20 ea)
- CS103 – Shelf Support (48 ea)
Key Features:
- Great product visibility with abundance of space and light.
- Perfect fit for any environment — it can be traditional, modern, or anything in-between.
- Ideal for displaying merchandise and promo products.
- The display equipment has an upscale look and can be easily re-configured or customized — adjust to any height and lock in desired position.
- Acrylic shelves standard depth is 8 inch — for deeper shelves please call.
- Acrylic holders work with standard prints or paper posters up to 135 gsm or 1 mm (1/32′′) thickness.
- Non-reflective acrylic front used to reduce the glare from sunny windows and spot lighting.
- Customizable to your needs at no extra cost.
Availability & Customizations:
- Fabrication Time: 10-15 Bus. Days
- For help with a new design please send us a project scope statement or detailed description with expected time-line using our Quote Request Form
Add-ons:
- Graphic Inserts Printing
Order high-resolution photographic quality prints to come with your newly purchased display. Inserts are printed onto 9mil satin polyester film and trimmed to sizes specified in each display kit description. To order your prints go to “Printing Services” page and select your print type, size and quantity and add to cart. Use the same page to upload and submit your print files. - Raised Letters / Logo Signage
Order dimensional / raised letters or logos to come with your newly purchased display. Letters are manufactured out of 1/4” thick acrylic and supplied in white or black acrylic with matte (satin) finish face and double-sided tape on the back for wall mounting. To order raised letters go to “Laser-Cut Acrylic Letters” store page and select a font style, letter size, finish, and submit your graphic file. For custom font styles and logos send your vector files to receive an estimate using our “Quote Request Form“.
