DC2608 Recognition Wall Display Concept (16FT WALL)
$2,566.78 – $2,789.26 Select options This product has multiple variants. The options may be chosen on the product page

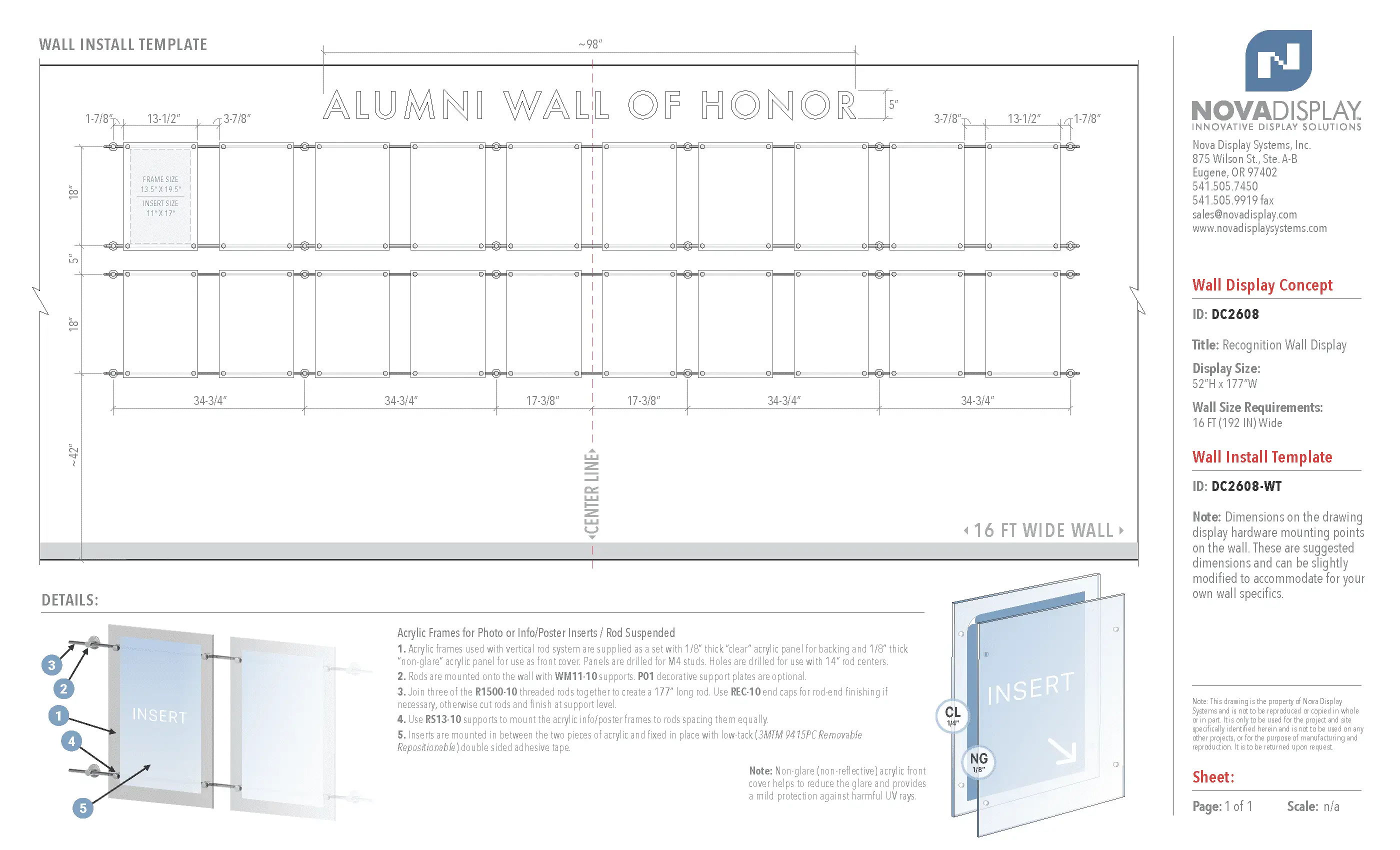

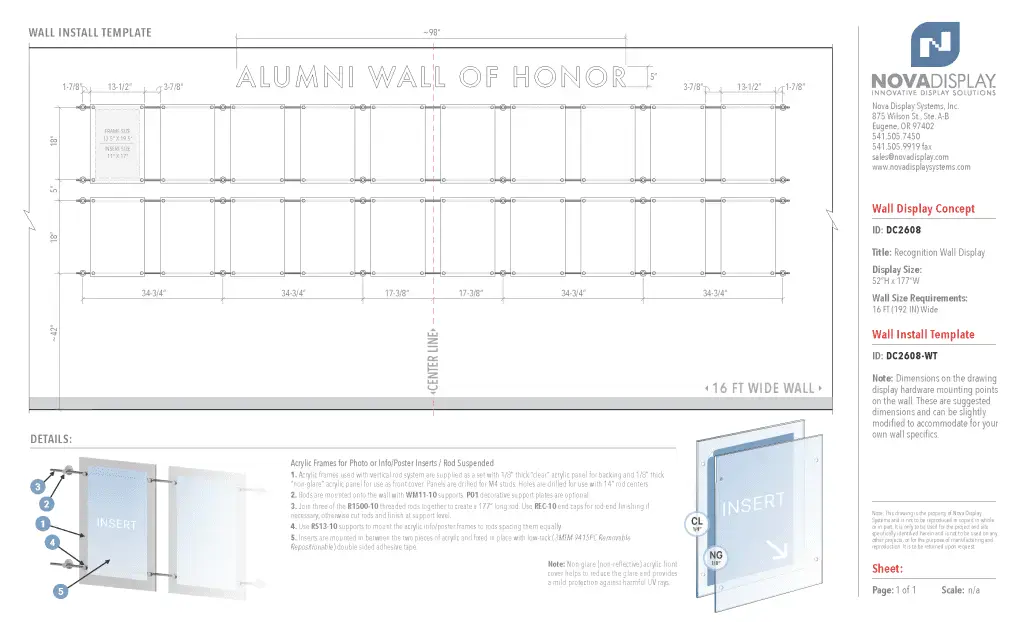

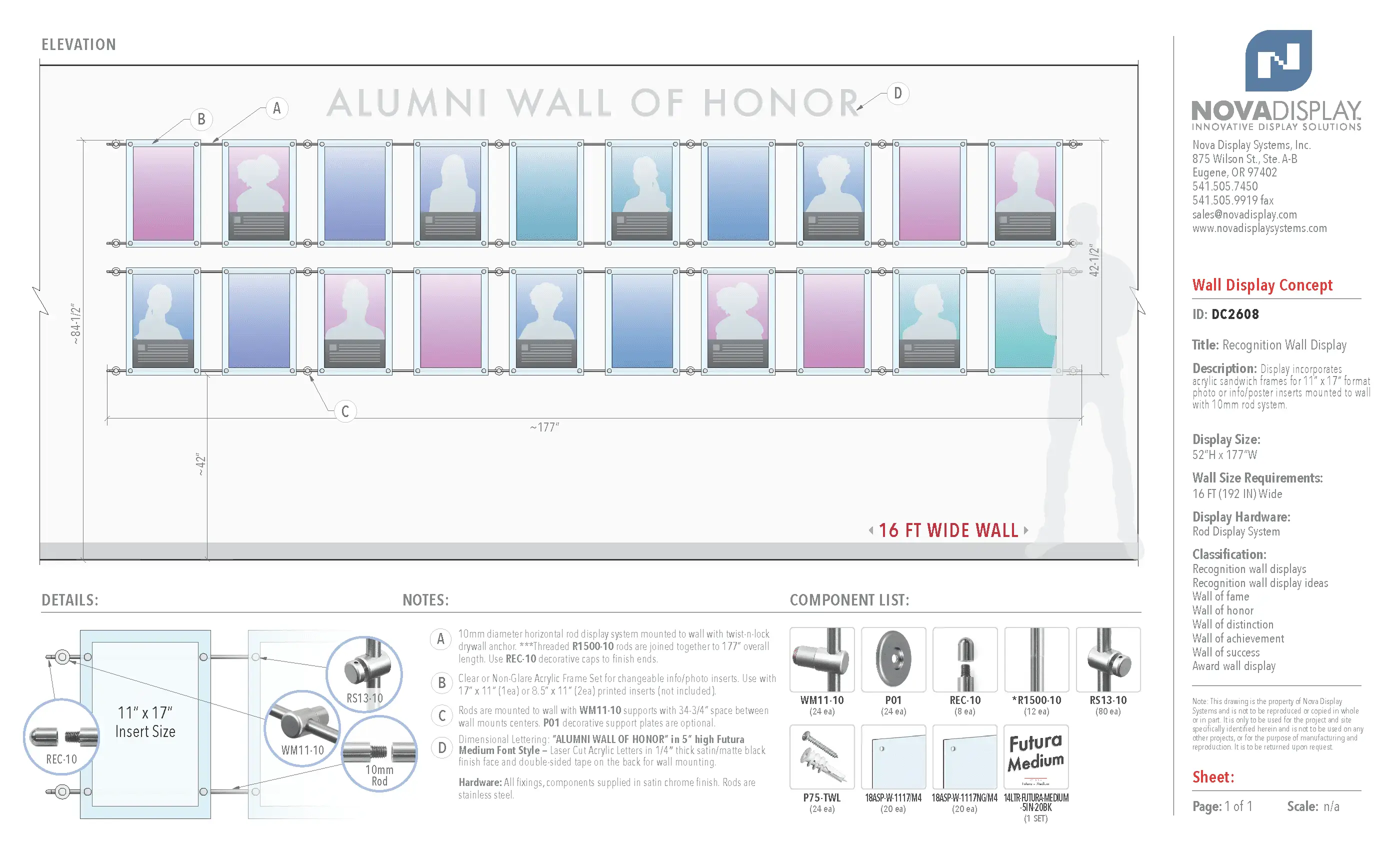

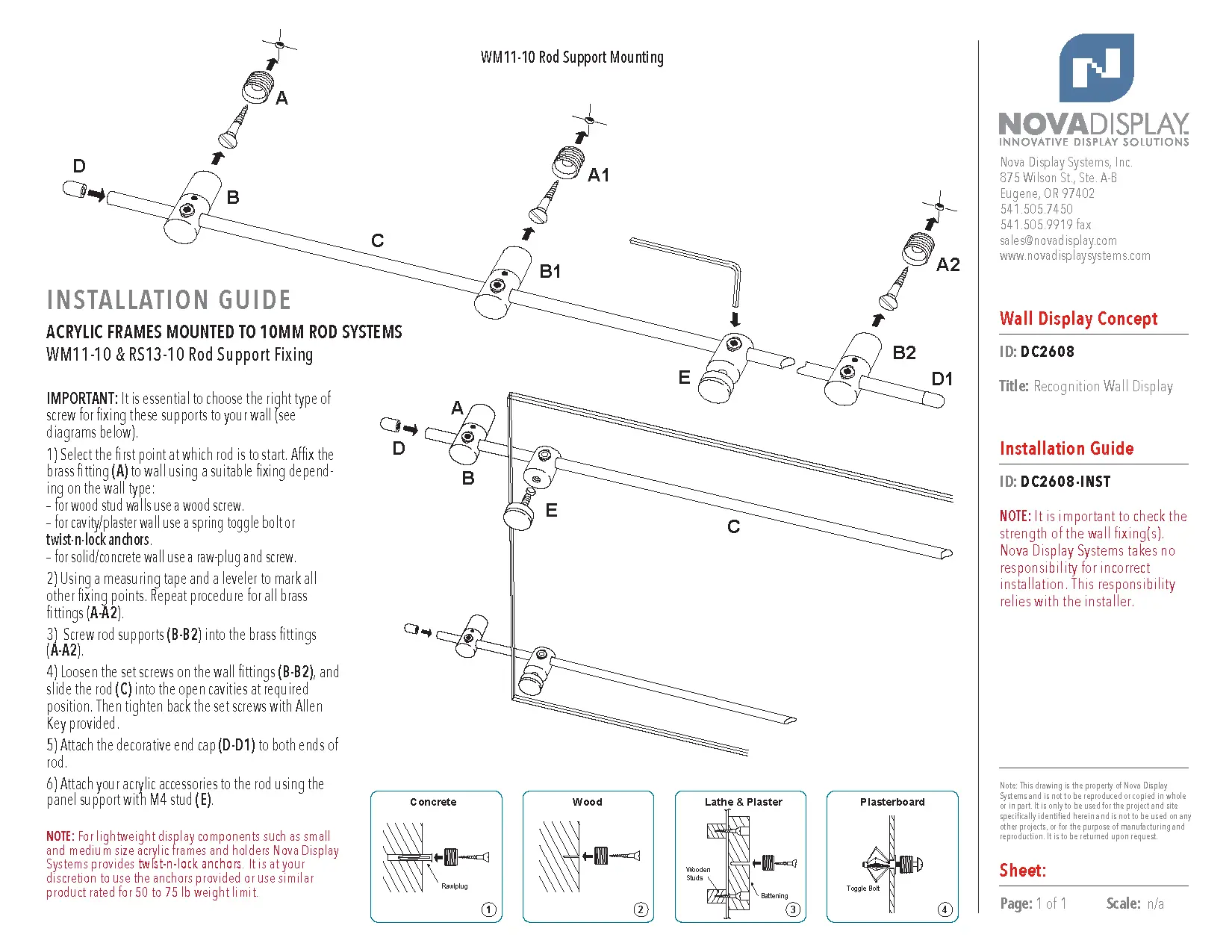

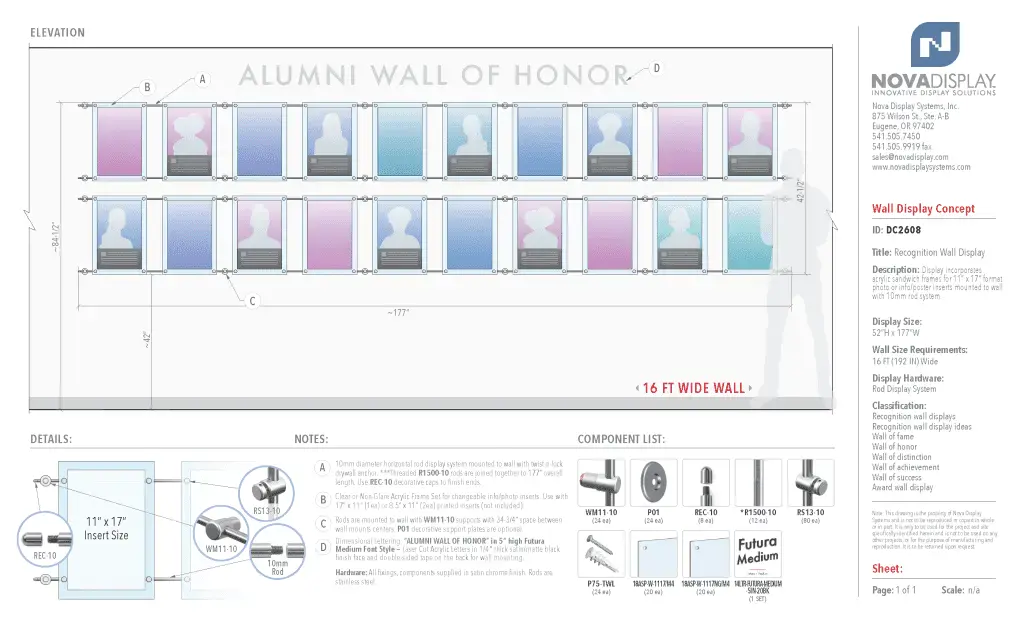

DC2608 Recognition Wall Display Concept
Description:
Recognition Wall Display / Alumni Wall of Honor – incorporates acrylic sandwich frames for 11” x 17“ photo or info/poster inserts mounted onto wall with 10mm rod display system. This is an elegant and easy-to-use display system that can be used to create stylish interior photo or info/poster displays. Ideal for displaying photographs, certificates, posters, or documents that require frequent updates. Display comes with wall mounts made of brass with satin chrome finish, steel rods in natural brushed stainless finish, and clear/non-glare acrylic frame panels. *Select acrylic frame finish type on the product page.
Size Requirements:
Overall Display Size: 177″W x 52″H
Wall Size: 16 ft (192 in) Wide
Component List:
- 18ASP-W-1117/S14 – Clear Acrylic Back Panel (20 ea)
- 18ASP-W-1117NG/S14 – Non-Glare Acrylic Front Panel (20 ea)
Frame Size: 13.5″W x 19.5″H; Insert Size: 11″W x 17″H (or 2 x 11″W x 8.5″H) - 14LTR-FUTURA-MEDIUM-5IN-20-BK – Acrylic Raised Letters in 5” high Futura Medium Font Style (1 set)
Laser Cut Acrylic Letters in 1/4” thick satin/matte black finish face and double-sided tape on the back for wall mounting.
Line Copy: “ALUMNI WALL OF HONOR” - WM11-10 – Rod Wall Fixing (24 ea)
- R1500-10 – 1.5m (4′ 11-1/16″) 6mm Dia. Rod (12 ea)
*** JOIN TO 177″ LENGTH ON SITE / NO CUTTING / FINISH ENDS WITH END CAPS (4 sets) - P01 – Decorative Base Plate (24 ea)
- REC-10 – Decorative End Cap (8 ea)
- RS13-10 – Vertical Panel Support (80 ea)
- P75-TWL – Twist-n-Lock Drywall Anchor Set (24 ea)
Key Features:
- Attractive, modern appearance. Ideal for displaying photographs, certificates, posters, or documents on interior walls.
- Provides a quick and easy way to change information.
- The display equipment has an upscale look and can be re-configured or easily customized.
- Works with standard prints or paper posters up to 135 gsm or 1 mm (1/32′′) thickness.
- Non-reflective acrylic front used to reduce the glare from sunny windows and spot lighting.
- Customizable to your needs at no extra cost.
Availability & Customizations:
- Fabrication Time: 5-7 Bus. Days
- For help with a new design please send us a project scope statement or detailed description with expected time-line using our Quote Request Form
Add-ons:
- Graphic Inserts Printing
Order high-resolution photographic quality prints to come with your newly purchased display. Inserts are printed onto 9mil satin polyester film and trimmed to sizes specified in each display kit description. To order your prints go to “Printing Services” page and select your print type, size and quantity and add to cart. Use the same page to upload and submit your print files. - Raised Letters / Logo Signage
Order dimensional / raised letters or logos to come with your newly purchased display. Letters are manufactured out of 1/4” thick acrylic and supplied in white or black acrylic with matte (satin) finish face and double-sided tape on the back for wall mounting. To order raised letters go to “Laser-Cut Acrylic Letters” store page and select a font style, letter size, finish, and submit your graphic file. For custom font styles and logos send your vector files to receive an estimate using our “Quote Request Form“. - Graphic Pre-placement
Prints will be placed inside the acrylic sandwich frames before Packing & Shipping – mounted in between the two pieces of acrylic and fixed in place with low-tack (3MTM 9415PC Removable Repositionable) double sided adhesive tape. If you require this option please request an estimate using our “Quote Request Form“.
