DC2602 Recognition Wall Display with Aluminum Frames for 8×10 Inserts (16FT WALL)
$2,123.82 – $2,128.86 Select options This product has multiple variants. The options may be chosen on the product page
DC2602 Recognition Wall Display with Aluminum Frames for 8×10 Inserts
Description:
Recognition Wall Display / Wall of Honor represents an innovative and versatile visual communication solution, featuring aluminum snap-open front-load frames designed to accommodate both 8″ x 10″ photographic inserts and expansive 18″ x 24″ informational posters. Meticulously crafted for professional environments, this modular display system offers unparalleled flexibility through its sophisticated rod mounting mechanism, utilizing 6mm horizontal stainless steel rods that can be seamlessly interconnected to create extended display lengths. The frames, available in elegant round or square profile designs and finished in contemporary silver or sleek black, enable effortless rearrangement and quick content updates, making them ideal for corporate settings, educational institutions, and public spaces seeking a dynamic and sophisticated method of showcasing achievements, certificates, and important documents. Complemented by premium brass wall mounts in a refined satin chrome finish and constructed with durability and aesthetic appeal in mind, this display system combines functional engineering with sophisticated design, ensuring a professional and visually compelling presentation that can be easily customized to meet diverse organizational communication needs. *Select frame profile style and finish type on the product page.

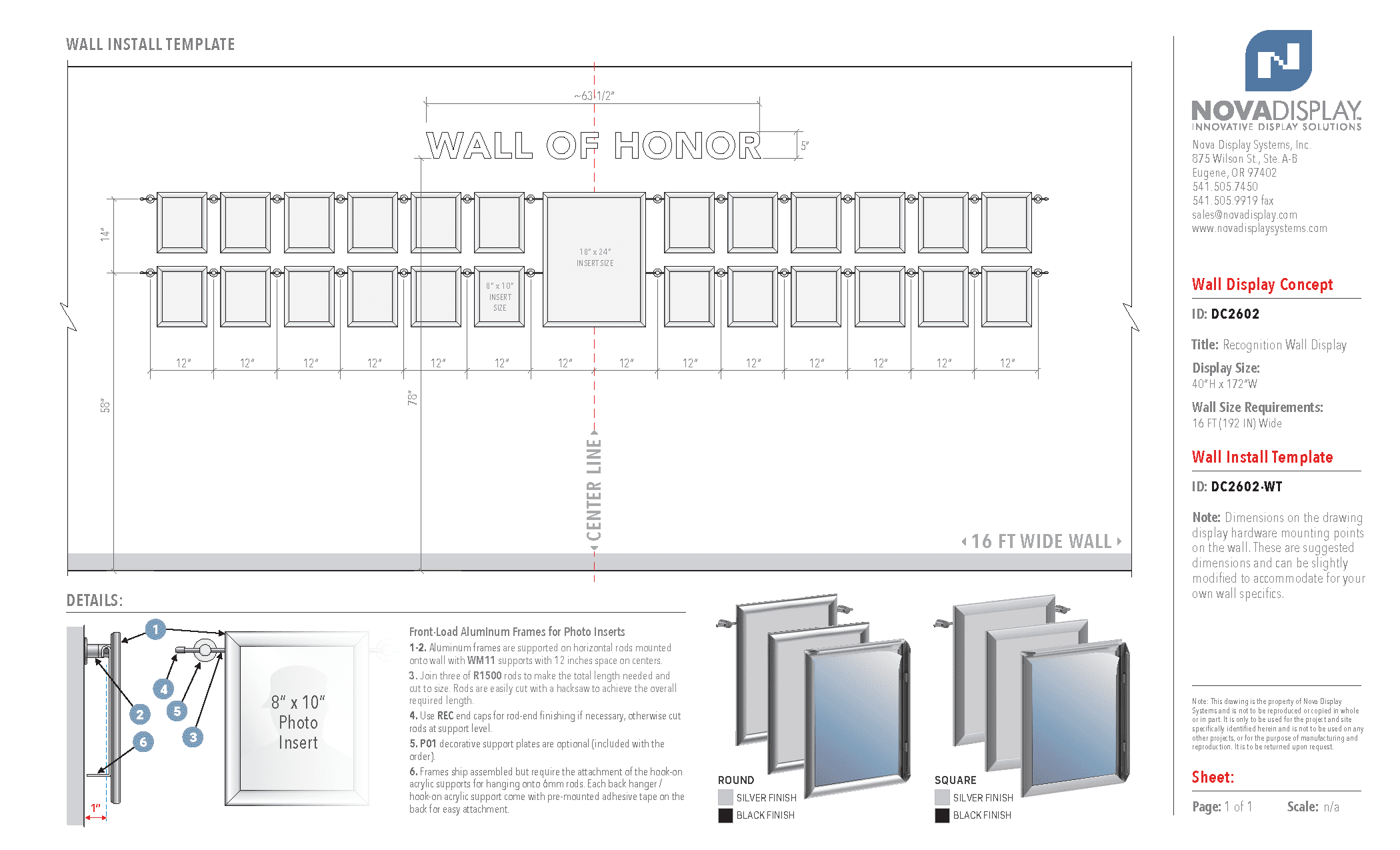

Size Requirements:

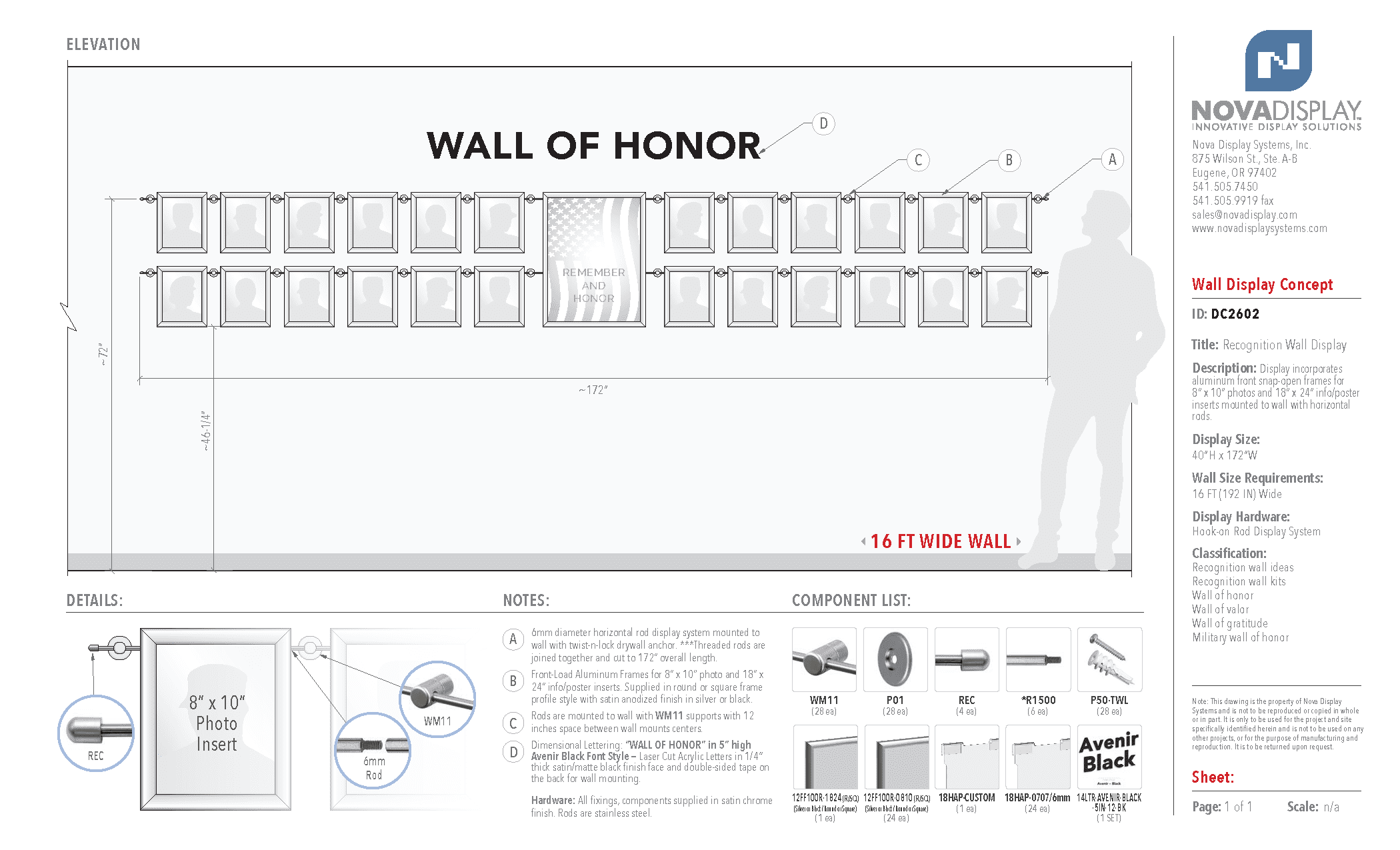

Overall Display Size: 172″W x 40″H
Wall Size: 16 ft (192 in) Wide
Component List:
- SW-12FF100-0810 (*R/SQ) – Front-Load Aluminum Frame for Photo Inserts (24 ea) / *Select profile style and finish type above.
Insert Size: 8″W x 10″H - SW-12-0306/8×10 – 0.030pt thick PETG Liner / Clear Protective Film (24 ea)
Film Size: 8″ x 10″ - 18HAP-0707/6mm – Acrylic Back Hanger / Hook-on Support w/Adhesive Tape (24 ea)
Use with 8″ x 10″ frames - SW-12FF100-1824 (*R/SQ) – Front-Load Aluminum Frame for Photo Inserts (1 ea) / *Select profile style and finish type above.
Insert Size: 18″W x 24″H - SW-12-0306/18×24 – 0.030pt thick PETG Liner / Clear Protective Film (1 ea)
Film Size: 18″ x 24″ - 18HAP-CUSTOM/DC2602 – Acrylic Back Hanger / Hook-on Support w/Adhesive Tape (1 ea)
Use with 18″ x 24″ frames - 14LTR-AVENIR-BLACK-5IN-12-BK – Acrylic Raised Letters in 5” high Avenir Black Font Style (1 set)
Laser Cut Acrylic Letters in 1/4” thick satin/matte black finish face and double-sided tape on the back for wall mounting.
Line Copy: “WALL OF HONOR” - WM11 – Rod Wall Fixing (28 ea)
- P01 – Decorative Base Plate (28 ea)
- R1500 – 1.5m (4′ 11-1/16″) 6mm Dia. Rod (6 ea)
*** JOIN AND CUT RODS TO 172″ LENGTH / FLAT ENDS (2 sets) - REC – Decorative End Cap (4 ea)
- P50-TWL – Twist-n-Lock Drywall Anchor Set (28 ea)
Key Features:
- Durable, lightweight, and elegant aluminum frames. Ideal for displaying photos, certificates, and documents.
- Frames a made of 1-3/8″ wide aluminum rails/profiles and are available in few standard insert sizes.
- Frames come with white corrugated plastic backer boards that are durable and PETG liner/protective clear film.
- Frames hook onto rods without the use of any tools. No assembly needed.
- Use with thin photo/graphic inserts up to 20 pt (1/50″, 1/2mm) in thickness.
- Frames ship assembled but require the attachment of acrylic back hanger for hanging onto rods.
- Custom size frames are also available upon request.
Availability & Customizations:
- Fabrication Time: 10-15 Bus. Days
- For help with a new design please send us a project scope statement or detailed description with expected time-line using our Quote Request Form
Add-ons:
- Graphic Inserts Printing
Order high-resolution photographic quality prints to come with your newly purchased display. Inserts are printed onto 9mil satin polyester film and trimmed to sizes specified in each display kit description. To order your prints go to “Printing Services” page and select your print type, size and quantity and add to cart. Use the same page to upload and submit your print files. - Raised Letters / Logo Signage
Order dimensional / raised letters or logos to come with your newly purchased display. Letters are manufactured out of 1/4” thick acrylic and supplied in white or black acrylic with matte (satin) finish face and double-sided tape on the back for wall mounting. To order raised letters go to “Laser-Cut Acrylic Letters” store page and select a font style, letter size, finish, and submit your graphic file. For custom font styles and logos send your vector files to receive an estimate using our “Quote Request Form“.
