DC2139 Photo Wall Display Concept
-
DC2139 Photo Wall Display Concept (18FT WALL)
$3,113.39 – $3,221.46 Select options This product has multiple variants. The options may be chosen on the product page
Description:
Photo Wall Display – incorporates acrylic sandwich frames for 5” x 7“ photos mounted to wall with vertical 10mm single-rod display system. It is an easy-to-use display system which allows you to create stylish interior displays for all types of information that can be changed in just a few minutes. Display comes with wall mounts made of brass with satin chrome finish, steel rods in natural brushed stainless finish, and clear or non-glare (non-reflective) acrylic holders. *Select acrylic finish type on the product page.
Optional Dimensional Lettering & Logo / NOT INCLUDED
Use “ADD-ON” tab on the web-store to order by selecting letter size, font style, and providing a copy/text line or vector file.
Size Requirements:

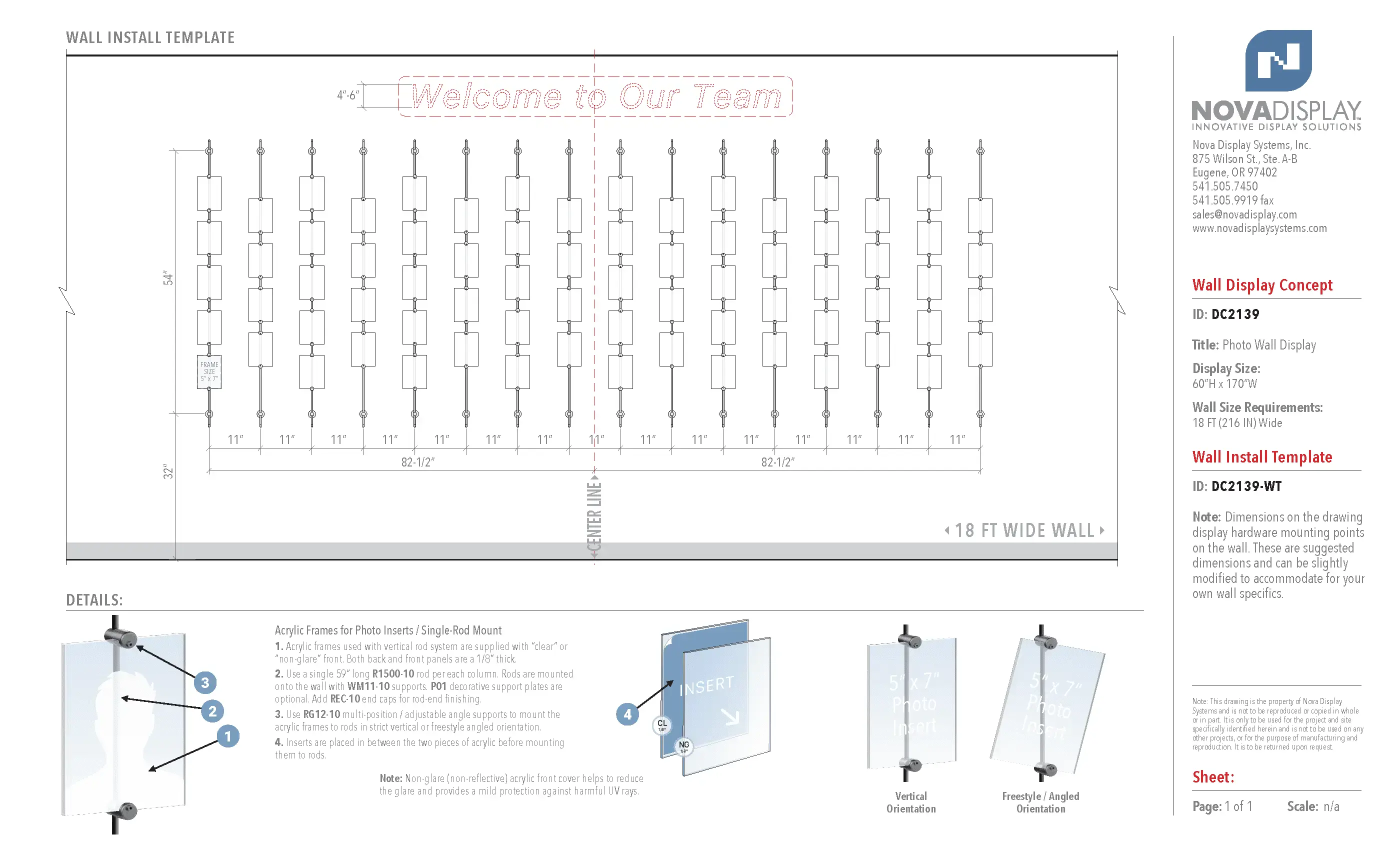

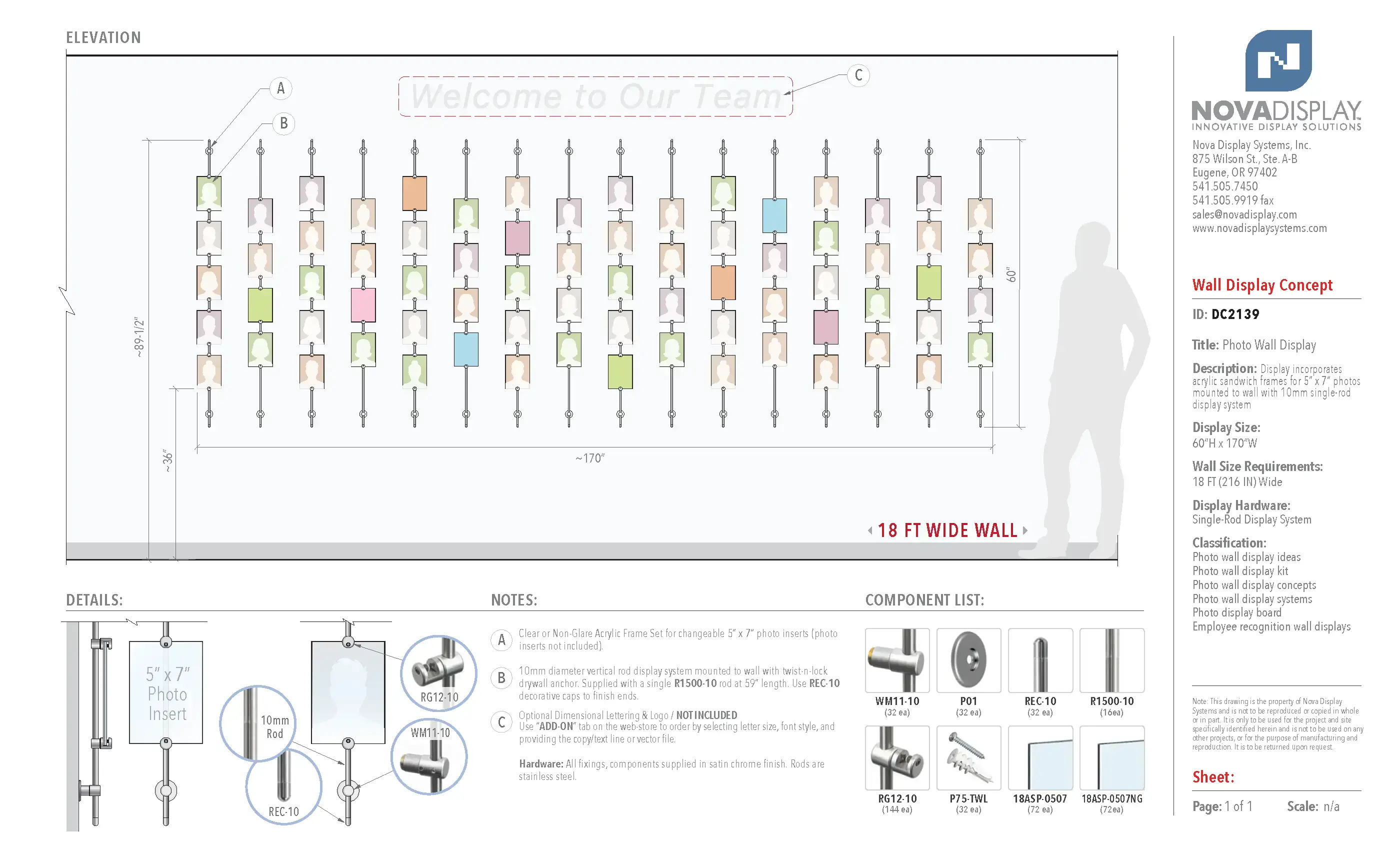

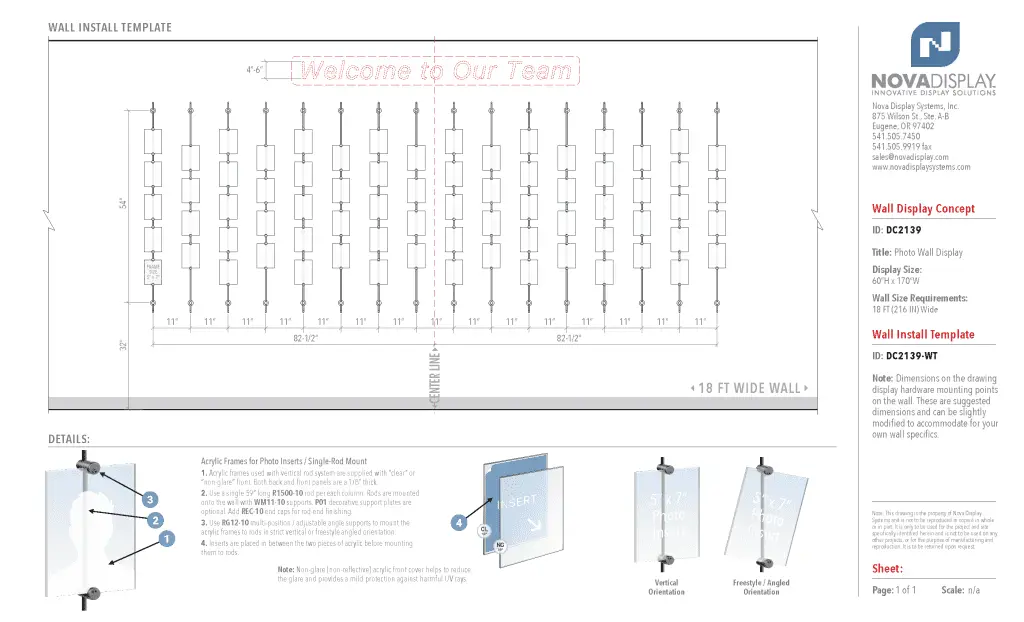

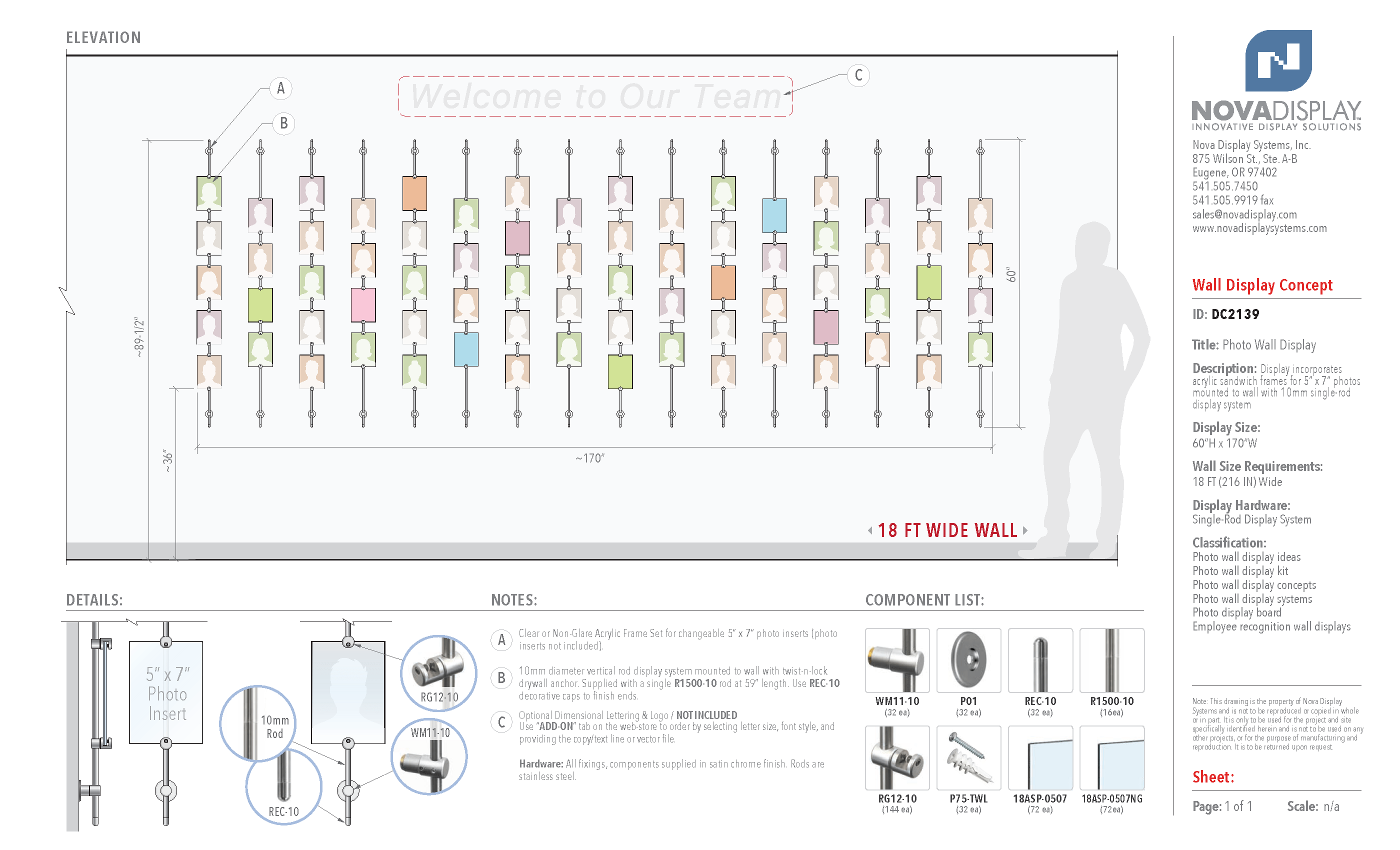

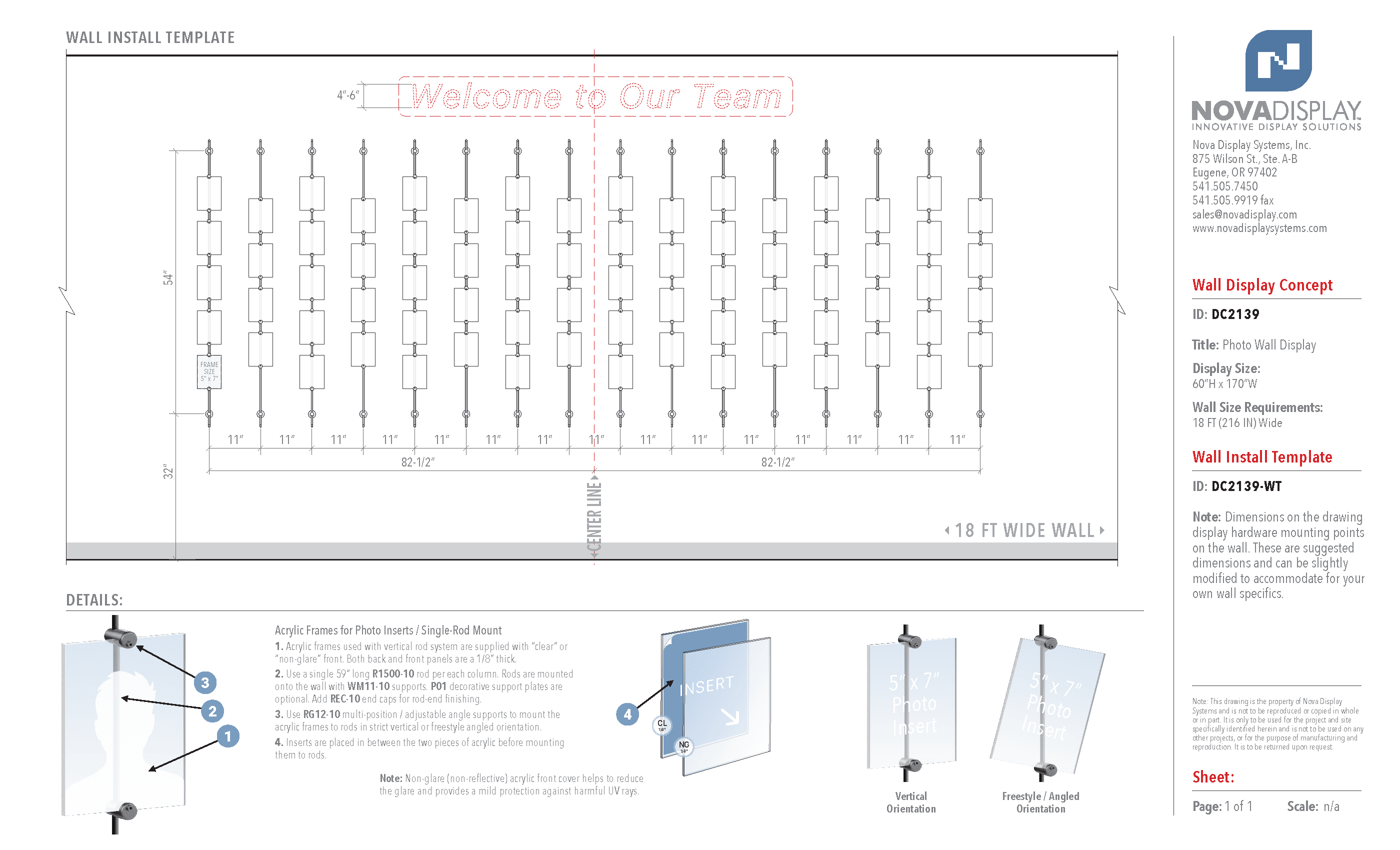

Overall Display Size: 170″W x 60″H
Wall Size: 18 ft (216 in) Wide

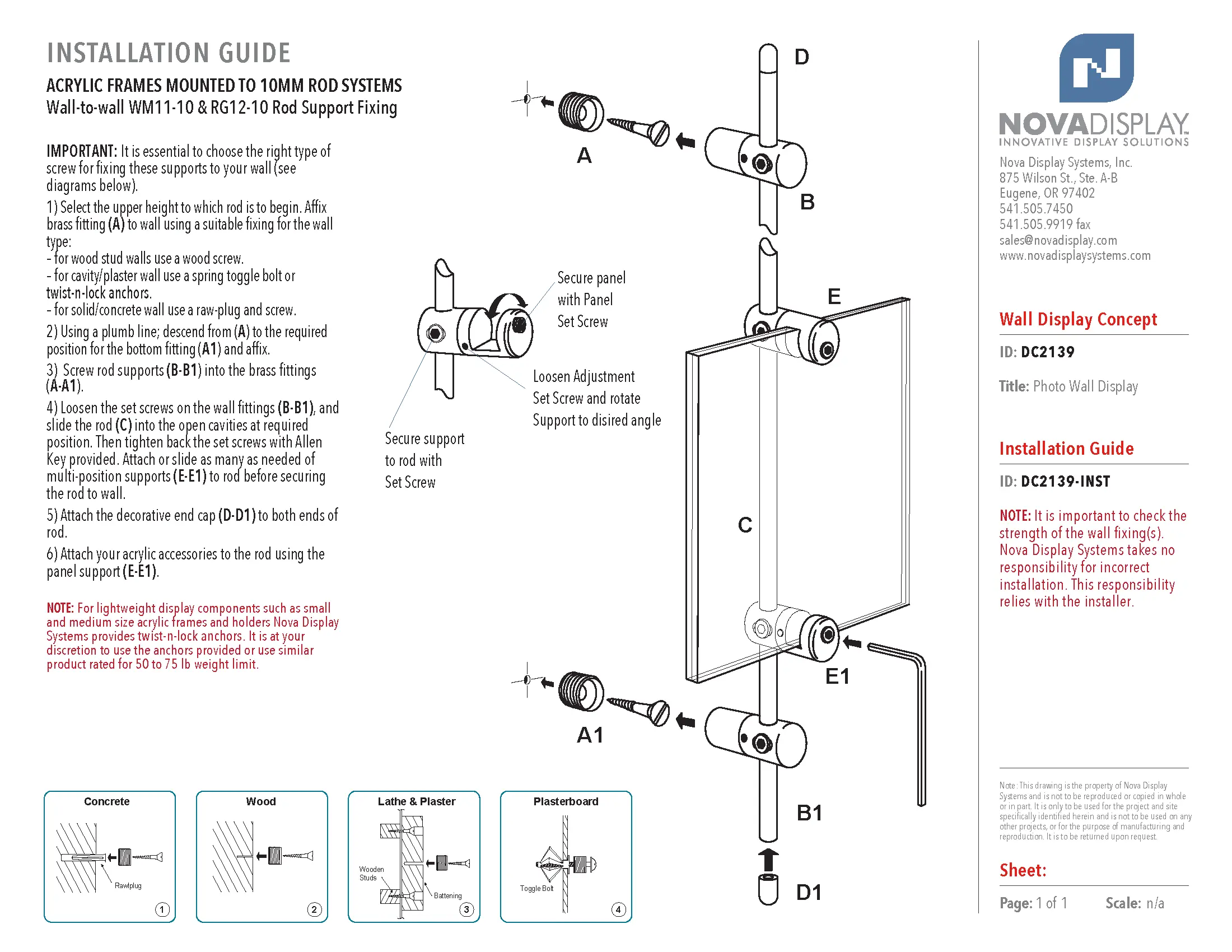

Component List:
- 18ASP-0507 – Clear Acrylic Back Panel (72 ea).
- 18ASP-0507 (*NG) – Clear or Non-Glare Acrylic Front Panel (72 ea) / *Select finish type above.
Insert Size: 5″W x 7″H - WM11-10 – Rod Wall Fixing (32 ea)
- R1500-10 – 1.5m (4′ 11-1/16″) 10mm Dia. Rod (16 ea)
*** USE ENTIRE ROD LENGTH ON SITE / NO CUTTING - P01 – Decorative Base Plate (32 ea)
- REC-10 – Decorative End Cap (32 ea)
- RG12-10 – Top/Bottom Multi-Position Rod Support (144 ea)
- P75-TWL – Twist-n-Lock Drywall Anchor Set (32 ea)
Key Features:
- Attractive, modern appearance. Ideal for displaying information and photos on interior walls.
- Provides a quick and easy way to change information.
- The display equipment has an upscale look and can be re-configured or easily customized.
- Works with standard prints or paper posters up to 135 gsm or 1 mm (1/32′′) thickness.
- Non-glare (non-reflective) acrylic front cover helps to reduce the glare from sunny windows and spot lighting.
- Custom frame sizes are available.
Availability & Customizations:
- Fabrication Time: 5-7 Bus. Days
- For help with a new design please send us a project scope statement or detailed description with expected time-line using our Quote Request Form
Add-ons:
- Graphic Inserts Printing
Order high-resolution photographic quality prints to come with your newly purchased display. Inserts are printed onto 9mil satin polyester film and trimmed to sizes specified in each display kit description. To order your prints go to “Printing Services” page and select your print type, size and quantity and add to cart. Use the same page to upload and submit your print files. - Raised Letters / Logo Signage
Order dimensional / raised letters or logos to come with your newly purchased display. Letters are manufactured out of 1/4” thick acrylic and supplied in white or black acrylic with matte (satin) finish face and double-sided tape on the back for wall mounting. To order raised letters go to “Laser-Cut Acrylic Letters” store page and select a font style, letter size, finish, and submit your graphic file. For custom font styles and logos send your vector files to receive an estimate using our “Quote Request Form“. - Graphic Pre-placement
Prints will be placed inside the acrylic sandwich frames before Packing & Shipping – mounted in between the two pieces of acrylic and fixed in place with low-tack (3MTM 9415PC Removable Repositionable) double sided adhesive tape. If you require this option please request an estimate using our “Quote Request Form“.
